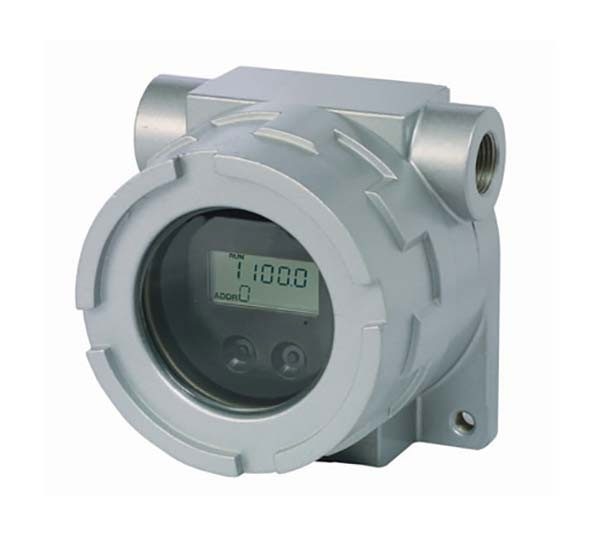

6DVI-B Field-mounted Two-wire Signal Conditioners 6-UNIT

Liên hệ Còn hàng

6DVI-B Field-mounted Two-wire Signal Conditioners 6-UNIT

4-DIGIT LOOP POWERED INDICATOR
(outdoor enclosure, intrinsically safe)

Functions & Features
• 4-digit LED display
• No external power source needed
• Scaling, linearization and other configurations selectable via three front control buttons
• Stainless steel enclosure optional
Note: Differences between the 6DV-B and the 6DVI-B exist only in safety parameters.  Refer to the relevant section for more information.

MODEL:6DVI–B–[1][2][3][4][5]

ORDERING INFORMATION
• Code number: 6DVI-B-[1][2][3][4][5]
Specify a code from below for each [1] through [5].
 (e.g. 6DVI-B-2T01/S)
• Use Ordering Information Sheet (No. ESU-4220). Factory standard setting will be used if not otherwise specified.
• Specify the country in which the product is to be used with the Safety Approval code 2.

[1] SAFETY APPROVAL
1: FM intrinsically safe
2: ATEX intrinsic safety

[2] TERMINAL BLOCK
0: None (Euro terminal block at the rear of indicator module)
T: Incorporated

[3] WIRING CONDUIT
0: G 1/2
1: 1/2 NPT
2: M20 × 1.5
3: PG 13.5

[4] MOUNTING BRACKET
0: Without
1: With

[5] OPTIONS
Enclosure Materials
Blank: Diecast aluminium enclosure
/S: Stainless steel enclosure

PACKAGE INCLUDES...
• Mounting bracket assembly (option)
    Mounting bracket: 1
    M10 U-bolt: 2
    Nut for M10: 4
    Spring washer for M10: 4
  Material:  Stainless steel 304 (for aluminum enclosure)
                 Stainless steel 316 (for stainless steel enclosure)
  Applicable pipe: 1 1/2” min.; 2” max.
• Engineering unit label (1)
