Compression Fitting

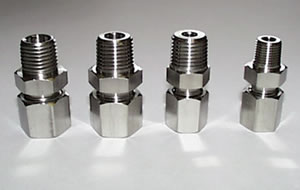

Use the compression fitting to fix sheathed thermocouple or RTD. The compression fitting consists of three parts, a compression cap nut, a compression Teflon cotter, and a compression seat. As a Teflon cotter is compressed by a compression cap nut, it squishes down the sheath. Please consult us for pressure above 5kg/cm².

Configuration	Nominal Sheath O.D. (mm)	Code	S1	S2	A	B
	1.0	CF101	NPT1/8	–	10	33
	1.6	CF161	NPT1/8	–	10	33
		CF162	NPT1/4	–	12	35
	2.2	CF231	NPT1/8	–	10	33
		CF232	NPT1/4	–	12	35
	3.2	CF321	NPT1/8	–	10	33
		CF322	NPT1/4	–	12	35
	4.8	CF481	NPT1/8	–	10	33
		CF482	NPT1/4	–	12	35
	6.4	CF642	NPT1/4	–	12	35
	8.0	CF802	NPT1/4	–	12	35
	3.2	CF324	NPT1/2	NPT1/8	20	59
		CF326	NPT3/4	NPT1/8	20	59
	4.8	CF484	NPT1/2	NPT1/8	20	59
		CF486	NPT3/4	NPT1/8	20	59
	6.4	CF644	NPT1/2	NPT1/4	20	59
		CF646	NPT3/4	NPT1/4	20	59
	8.0	CF804	NPT1/2	NPT1/4	20	59
		CF806	NPT3/4	NPT1/4	20	59
