Compensating Cable/Duplex Wire

Liên hệ Còn hàng

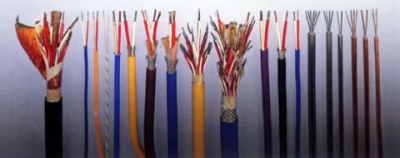

AMARI provides various kinds of accessories for thermocouples and resistance temperature detectors.

Compensating and Duplex Cables

Appearance Code Color Coding Element Pair Dimensions No./Core O.D Dimensions Nom.finish (mm) Covering Application
KX13 RX13
KX13
WX13
EX13
JX13
TX13
Black
Blue
Blue
Purple
Yellow
Brown
R
K
K
E
J
T
single 7/0.3mm 4.6 x 2.8 Inner: Glass braided insulating sheath
Outer: Stainless steel shield
Heat-Resistance (up to 180°C)
KX13D KX13D
WX13D
JX13D
Blue
Blue
Yellow
K
K
J
double 7/0.3mm f5.3 Inner: Glass braided
Outer: Stainless steel shield
Heat-Resistance (up to 180°C)
*KX14 RX14
NX14
KX14
WX14
EX14
JX14
TX14
Black
Pink
Blue
Blue
Purple
Yellow
Brown
R
N
K
K
E
J
T
single 7/0.3mm 4.3 x 2.3 Glass braided insulating sheath Heat-Resistance (up to 180°C)
*WX14D WX14D
EX14D
JX14D
TX14D
Blue
Purple
Yellow
Brown
K
E
J
T
double 7/0.3mm f4.5 Glass braided insulati Heat-Resistance (up to 180°C)
*KX15 BX15
RX15
NX15
KX15
VX15
EX15
JX15
TX15
Grey
Black
Pink
Blue
Blue
Purple
Yellow
Brown
B
R
N
K
K
E
J
T
single 7/0.3mm 4.1 x 2.4 PVC General (up to 90°C)
*KX15D KX15D
VX15D
EX15D
JX15D
TX15D
Blue
Blue
Purple
Yellow
Brown
K
K
E
J
T
double 7/0.3mm f5.0 PVC General (up to 90°C)
*KX15A RX15A
KX15A
VX15A
JX15A
TX15A
Black
Blue
Blue
Yellow
Brown
R
K
K
J
T
single 7/0.3mm 5.0 x 3.6 Inner: Copper shield
Outer: PVC
General (up to 90°C)
*VX15AD VX15AD Blue K double 7/0.3mm 5.0 x 3.6 Inner: Copper shield
Outer: PVC
General (up to 90°C)



RTD Lead Wire

Appearance Code Color Coding Pair Dimensions No./Core O.D. Dimensions Nom.finish(mm) Covering Application
WR13 Grey 3-wires, single (Red,White,White) 20/0.18mm φ5.0 mm Inner: Glass braided insulating sheath
Outer: Stainless steel shield
Heat-Resistance (up to 180°C)
WR13D Grey 3-wires, single (Red,White,White) 20/0.18mm φ6.6 mm Inner: Glass braided insulating sheath
Outer: Stainless steel shield
Heat-Resistance (up to 180°C)



Thermocouple Duplex Wire

Appearance Code Conductor Material Color Coding Dimensions Core (mm) Dimensions Nom.finish(mm) Covering
+ leg – leg
*DK301 DK301
DJ301
DT301
Chromel
Iron
Copper
Alumel
Constantan
Constantan
Blue
Yellow
Brown
0.32 Single core 2.1 x 3.2 Heat Resistant PVC insulating sheath
*DK651 DK651 Chromel Alumel Blue 0.65 Single core 2.6 x 4.0 Heat Resistant PVC insulating sheath
*DK30TT DK30TT
DJ30TT
DT30TT
Chromel
Iron
Copper
Alumel
Constantan
Constantan
Blue
Yellow
Brown
0.32 Single core 1.0 x 1.6 Teflon
*DK65TT DK65TT
DJ65TT
DT65TT
Chromel
Iron
Copper
Alumel
Constantan
Constantan
Blue
Yellow
Brown
0.65 Single core 1.5 x 2.5 Teflon
