Yamari - Phụ Kiện (Thermowell, Fitting, Connecter, Compensating Cable)

Liên hệ Còn hàng

Hãng Sản Xuất: Yamari

Xuất Xứ: Nhật Bản

Tình Trạng: Còn Hàng

Thông tin sản phẩm

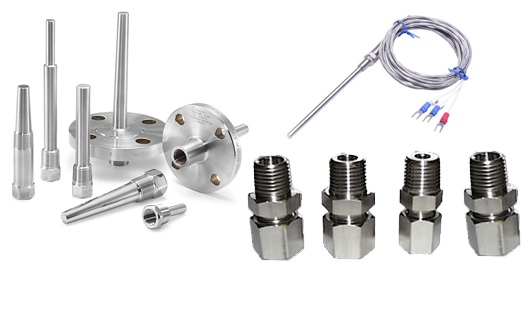

We provide various kinds of accessories for thermocouples and resistance temperature detectors.

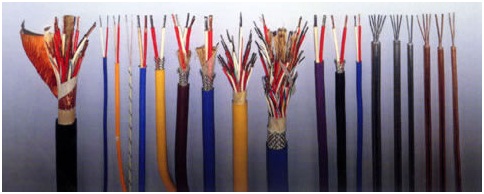

Compensating Cable / Duplex Wire

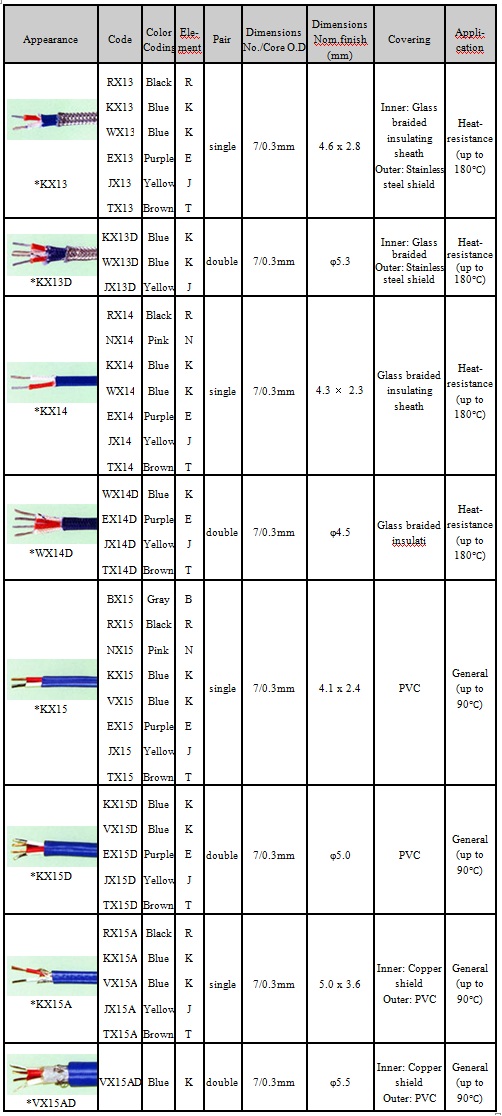

[ Compensating Cable for Thermocouple ]

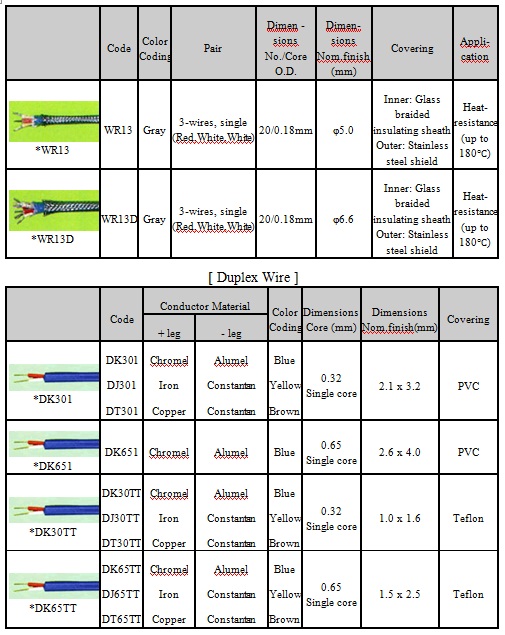

[ RTD Lead Wire ]

Thermo Well

Thermowell (Drilled Bar Stock Type Protection Tube) is usually being used to ensure longer service life under critical conditions such as very corrosive gasses or liquids, high temperature, high pressure, vibration, shock or high flow velocity. At Yamari, various Thermowells durable under these conditions are manufactured. Please contact us for configuration, material, dimension, etc. including pressure test.

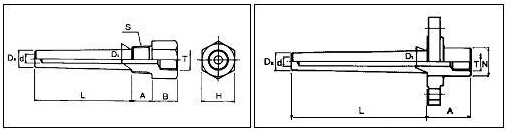

		Screwed-in Type		Flanged Type

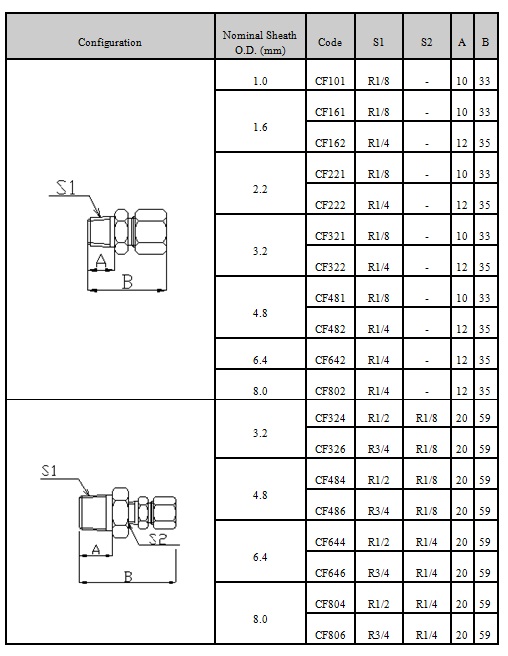

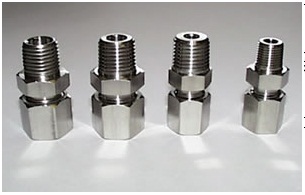

Compression Fitting (CF)

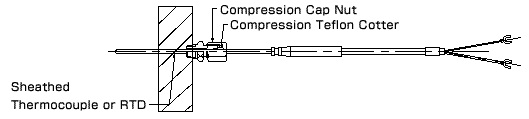

Use the compression fitting to fix sheathed thermocouple or RTD. The compression fitting consists of three parts, a compression cap nut, a compression Teflon cotter, and a compression seat. As a Teflon cotter is compressed by a compression cap nut,, it squishes down the sheath. Please consult us for pressure above 5kg/cm.

Thermocouple Connector

[Standard Connector (Model: DL)]
Solid pin plug and socket are made of extension and compensating grade alloys which are housed in color-coded heat-resistance plastic shells. Select connector in accordance with the type of thermocouple to be used.

Code	Type of Thermocouple Used	Shell Color
DL-K	K	Blue
DL-J	J	Yellow
DL-T	T	Brown
DL-E	E	Purple
DL-R	R	Black

[Miniature Connector (Model: DS)]
Except smaller flat bar plug is used, construction is similar to that of standard connector. Recommended for small size THERMIC up to 3.2mm O.D.
