Eclipse - 330 ImmersoJet

Liên hệ Còn hàng

ImmersoJet

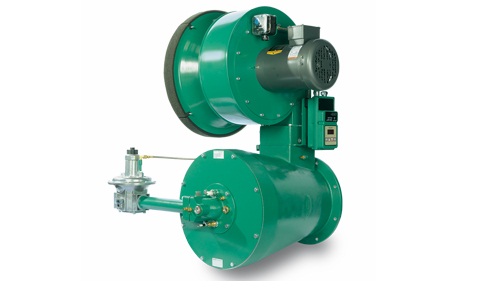

The Eclipse ImmersoJet (IJ) is a nozzle-mix, tube-firing burner that is designed to fire at high velocities through a small diameter immersion tube in immersion heating tanks. The combustion gases from the burner scrub the inner tube surfaces to produce the highest heat transfer rate of any immersion burner available. It provides faster heat-up times than any other immersion burner. The standard burner includes a packaged blower, actuator control motor, integral butterfly valve, ratio regulator, burner body, combustion chamber, nozzle rear cover, spark and flame rods.



  • Produces the industry’s highest heat capacities and efficiencies.
  • Tube requirements save valuable space inside the tank.
  • Comes mounted with a reliable low or high pressure blower for ease of installation.
  • Quickly transfers heat to the immersion tube, resulting in lower burner surface temperature.
  • Provides faster heat-up times than any other immersion burner.
  • Combustion chamber is outside the tank, taking up less space and providing more uniform heat.
  • Unique nozzle design ensures quiet operation.



Current Version: 2.6
Type: Nozzle Mixing
Number of Sizes: 5 (2", 3", 4", 6", 8")
Capacity Range:   190,000 to 8,000,000 (Btu/hr)
56 to 2344 (kW)
Turndown: 7:1 minimum
Max. Process Temperature: 200 - 400°F, 93 - 204°C
Fuels: Natural Gas, Propane, Butane
Typical Applications:

Wash and rinse tanks
Dip Tanks
Pickling Tanks
Spray Washers
Deep Fryers
Salt Baths
Quench Tanks

Key Attributes:

Up to 80% efficiency.Allows the use of smaller, lower cost tubes.
