Model No. GK__

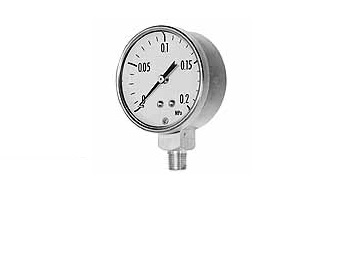

Small Pressure Gauges

Model No. GK__

This small pressure gauge is mainly used for pneumatic pressure measurement contributes for the miniaturization of installing device. Eccentric pressure gauge with vibration resistance, glycerin filled pressure gauge and corrosion resistive SUS-made pressure gauge are available depending upon applications.

Feature

• ・Small and lightweight pressure gauge can be installed into limited space.
  ・Small and lightweight but easy pressure reading.

  ＊To maximize performance, select full scale pressure range to indicate normal operating pressure which comes to 　conditions below.
  　　　For constant pressure　: The maximum operating pressure should not exceed three-quarters of the full-
  　　　　　　　　　　　　　　　scale range.
  　　　For fluctuating pressure: The maximum operating pressure should not exceed two-thirds of the full-scale
  　　　　　　　　　　　　　　　range.
  　Select appropriate wetted parts compatible with process fluid (gas and liquid) which the gauge will be
  　subjected.
  　Please refer to JIS B 7505-1 for details.

Catalog - Model No. GK__
