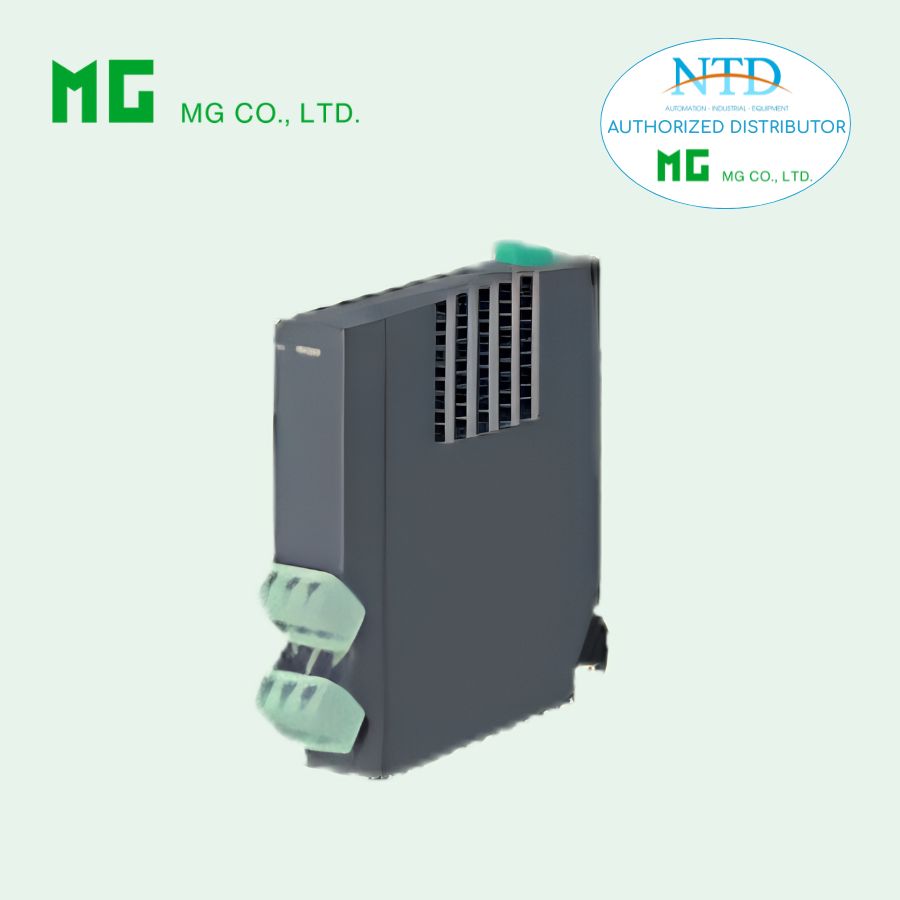

POWER SUPPLY MODULE R6N-PSM

Liên hệ Còn hàng



Remote I/O R6 Series

INSTALLATION BASE

(Screw terminal)
Functions & Features
· Installation base dedicated to Remote I/O R6 Series

MODEL: R6N-BS[1][2]

ORDERING INFORMATION

• Code number: R6N-BS[1][2]
Specify a code from below for each of [1] and [2].
  (e.g. R6N-BS8A/Q)
• Specify the specification for option code /Q
  (e.g. /C01)

[1] NUMBER OF SLOTS

8A: 8 I/O slots + Network Module (18 mm wide)
8B: 8 I/O slots + Network Module (36.5 mm wide)
(Selectable only for using with R6-NF1, R6-NC3/W or R6-PSM)
8P: 8 I/O slots for extension

[2] OPTIONS

blank: none
/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to our web site.)
Only solder side of the PWB is coated.
/C01: Silicone coating
/C02: Polyurethane coating

GENERAL SPECIFICATIONS

Construction: DIN rail or surface mounting
Capacity:
•R6N-BS8A: I/O / power supply module, 8 slots + network (18 mm wide) module
•R6N-BS8B: I/O / power supply module, 8 slots + network (36.5 mm wide) module
•R6N-BS8P: I/O / power supply module, 8 slots
Housing material: Flame-resistant resin (black)

INSTALLATION

Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Construction: DIN rail or surface mounting
Weight (No remote I/O module mounted)
R6N-BS8A: 80 g (2.8 oz)
R6N-BS8B: 95 g (3.4 oz)
R6N-BS8P: 50 g (1.8 oz)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 2000 V AC @ 1 minute
(internal power or internal field signal to ground)

STANDARDS & APPROVALS

EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
RoHS Directive

EXTERNAL VIEW

Mount I/O and power supply modules, starting from the left end.
The power supply module could be mounted at any slots, however, installing them at either end is generally recommended.

EXTERNAL DIMENSIONS unit: mm [inch]

MOUNTING REQUIREMENTS unit: mm [inch]

■ MOUNTING DIRECTION
The unit must be mounted on a vertical panel. Mounting in any other angle will cause internal temperature to rise,
may shorten the product’s life expectation or deteriorate its performance.
