PT TRANSMITTER Series W2PA

PT TRANSMITTER

Model: W2PA

PT TRANSMITTER

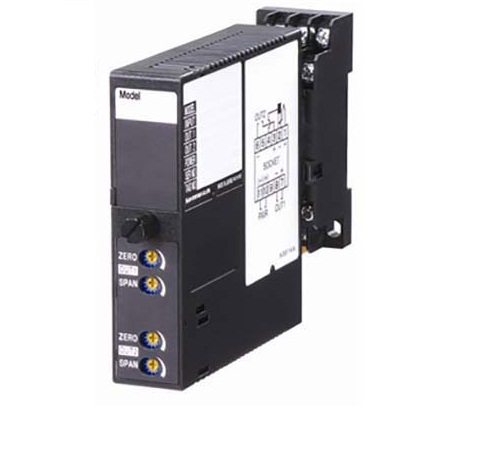

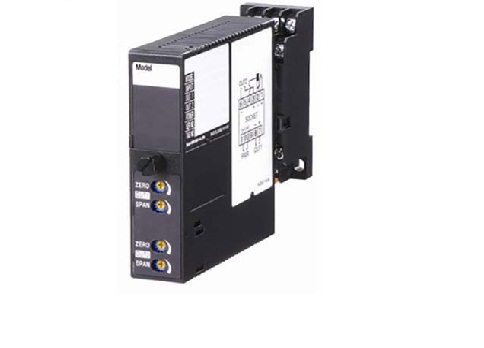

Model: W2PA - 1AA - M2

Functions & Features
• Converts an alternating voltage input from a potential
(voltage) transformer
• Minimum ripple
• Average sensing
• Two independent output ranges
Typical Applications
• Centralized monitoring and control of power line and
power supply voltage measured at switch boards
• Monitoring abnormal voltage drops for detecting overload

MODEL: W2PA–[1][2][3]-[4][5]

[1] INPUT (sine wave)
Voltage
1: 0 – 110 V AC

[2] OUTPUT 1
Current
A: 4 – 20 mA DC (Load resistance 750 Ω max.)

[3] OUTPUT 2
Y: None
Current
A: 4 – 20 mA DC (Load resistance 350 Ω max.)

[4] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(90 – 264 V for UL)

[5] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)


PT TRANSMITTER Model: W2PA
