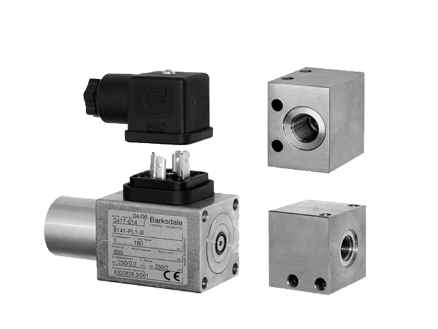

Series 8000

Compact Pressure Switch

Modular compact switch with manifold mount capability. Ranges from 5.8-8700 psi

Description

The Series 8000 mechanical switch incorporates all the manufacturing knowledge and experience that has earned Barksdale's Compact Switches the reputation of top quality and robustness in a competitive industry. With 6 different pressure ranges between 6 and 8,700 psi (0.4 to 600 bars), customers have the option to select either the diaphragm model or the piston version to meet their specific application needs. A large choice of pressure port blocks bolted on the CETOP flange provide customers the flexibility to order various pressure ports independent of the switch, keeping inventory costs low.

Features

• Proven design in stationary and mobile hydraulic applications

• Wide set point pressure range
• Available in wide range of configurations
• Precise set point adjustment
• Factory preset or field adjustable
• UL Type 4, IP65, IP67, IP68, Ex ia
• Modular concept
• Manifold mount
• Additional process connections

Applications

• Hydraulic power packs

• Machine tools
• Brake systems
• Railways
• Factory automation
• Balers and compactors

------------------------
