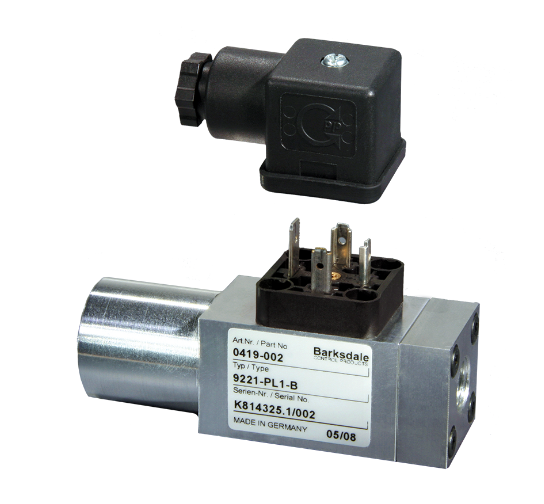

Series 9000

Compact Pressure Switch

Modular design, precise field adjustment, compact design

Description

The Series 9000 pressure switch offers uncompromising performance in a compact design. As a smaller sibling to the Series 8000, the Series 9000 measures 1.2 x 1.2 x 3.8 inches. It features a long pressure spring for precise switch point adjustments and excellent accuracy at +/- 2% of full scale. Additional features include an adjustable pressure range from 90 to 5800 psi with a proof pressure up to 8700 psi, standard aluminum body construction and a tamper-resistant adjustment set screw. Options include factory preset, US or European standard process connections and either NBR or FKM seals. The Series 9000 has been proven in the field for years in Europe, providing reliable performance in stationary and mobile hydraulics, machine tool and factory automation, making it a good choice for your pressure switch needs

 Features

• Compact design as compared to Series 8000

• Long pressure spring (enhanced adjustment)
• Captive set screw
• Standard DIN 43650 electrical connector
• NEMA 4 / IP65

Applications

• OEM applications
• Hydraulic power units
• Test equipment
• Heavy industry
• Mobile and stationary hydraulics
• Press Equipment

Pressure Switch

------------------------
