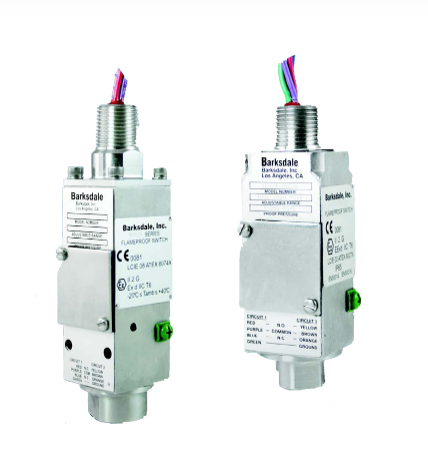

Series 9681X, 9692X, 9671X
Explosion Proof Compact Switch
Compact Vacuum/Pressure Switches
Series 9671X- Compact explosion proof, from 1 - 30 inches Hg.
Series 9681X - Compact explosion proof, low pressure from 1 - 500 psi
Series 9692X - Compact explosion proof, high pressure up to 10,000 psi
Description
Barksdale's explosion proof compact pressure swtiches are ideal for hazardous location hydraulic applications and many of your other industrial control needs. Series 9671X/9681X are available in vacuum and pressure ranges up to 500 psi with a high proof pressure of 1000 psi, and series 9692X is available in pressure ranges up to 10,000 psi with a high proof pressure of 15,000 psi, these pressure switches come with a SPDT or DPDT limit switch. The rugged design provides you with the reliablility you need for your mission critical applications
Features
Diaphragm Seal Option Available
NEMA 4X, 7 & 9
Safe to Adjust During Operation
Tamper Proof Cover SPDT and DPDT Switch Option
NACE Compliant
Dual Seal for Div 1 & 2 applications
UL, CSA, IECEx and ATEX approved
Applications
BOP closing units
Safety panels
Pipelines Chemical and petrochemical plants
Pulp and paper mills
Pump and gas compressors
Turbines
Pressure Switch
| Stt | Tên sản phẩm | Model |
| 1 | Barksdale T9692X-2EE-1-001 Compact Explosion Proof Temperature Switch | T9692X-2EE-1-001 |
| 2 | Barksdale T9692X-1EE1001W048 Compact Explosion Proof Temperature Switch | T9692X-1EE1001W048 |
| 3 | Barksdale T9692X-1EE-1001W48 Compact Explosion Proof Temperature Switch | T9692X-1EE-1001W48 |
| 4 | Barksdale T9692X-1EE-2001W72 Compact Explosion Proof Temperature Switch | T9692X-1EE-2001W72 |
| 5 | Barksdale T9692X-2EE-1-144 Compact Explosion Proof Temperature Switch | T9692X-2EE-1-144 |
| 6 | Barksdale T9692X-2EE2001W120 Compact Explosion Proof Temperature Switch | T9692X-2EE2001W120 |
| 7 | Barksdale T9692X-2EE2001W200 Compact Explosion Proof Temperature Switch | T9692X-2EE2001W200 |
------------------------
