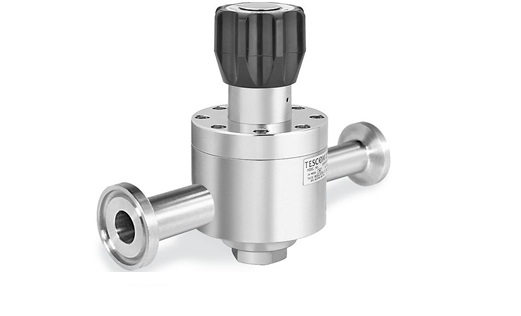

DH-16 low pressure, high flow regulator is designed for applications with flows from 5-200 SCFM / 141-5663 SLPM. Its Gylon® diaphragm ensures gas purity and integrity. Welded sanitary, tubing, or VCR® connections are standard. Ideal for use in nitrogen purging or facility tool and equipment for air or nitrogen

Pressure Rating

Maximum Inlet Pressure: 300 psig / 20.7 bar
Outlet Pressure Ranges: 0 -
20, 50, 100, 150, 250, or 300 (dome loaded only) psig
1.4, 3.4, 6.9, 10.3, 17.2, or 20.7 bar

Body, Bonnet, Back-cap

316 Stainless Steel

Diaphragm

Ethylene Propylene, Gylon®

Seat Material

Vent: CTFE, Vespel®
Main Valve: Buna-N 90, Ethylene Propylene 80, Chemraz 75®, Viton®

O-Rings

Buna-N, Ethylene Propylene, Chemraz®, Viton®

Remaining Parts

300 Series Stainless Steel, Nitronic 60

Operating Temperature

-20°F to 165°F / -29°C to 74°C

Port Size & Type

1/2 , 3/4 , 1 , 1 1/2
FVCR, MVCR, Tube
1/4 NPTF, HPIC (gauge only)

1/2 port limits regulator Cv to 2.0
3/4 port limits regulator Cv to 3.0

Flow Capacity

Cv = 5.0

Load Type

Spring, Dome

Weight

15 lbs / 6.8 kg
