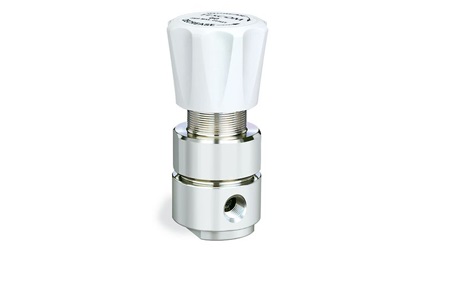

PH-2200 Series is part of our Pharmpure product line. This high purity single-stage regulator offers a compact, USP Class VI and BPE compliant design suitable for specialty, corrosive, and pyrophoric gases of < 5 SCFM / 142 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for use in sparge gases, clean steam for sanitization, transfer panels and low flow specialty gas.

Maximum Inlet Pressure

150 psig / 10.3 bar

Outlet Pressure Ranges

Spring (handknob): 0-10, 0-25, 0-50, and 0-100 psig / 0-0.69, 0-1.7, 0-3.4, and 0-6.9 bar
Spring Bias and Dome: 0-100 psig / 0-6.9 bar (See Part Number Selector for more details)

Body Material

316L Stainless Steel

Seat Material

Teflon®, PEEK-OPTIMA® or PEEK-Classix®

Friction Sleeve

Inner: Teflon®
Outer: 316 Stainless Steel

Diaphragm & Valve Guide

316 Stainless Steel

Seat Retainer

Nitronic 60

Remaining Parts

316 Stainless Steel

Operating Temperature (Media Only)

Teflon® Seat: -40°F to 165°F / -40°C to 74°C
PEEK-OPTIMA® or PEEK-Classix® Seat: -40°F to 400°F / -40°C to 204°C

Port Size & Type

Inlet & Outlet Port Type: Sanitary, Tube
Inlet & Outlet Port Size: 3/8 (Tube Only), 1/2

Flow Capacity

Cv = 0.06, 0.15, and 0.24

Load Type

Spring, Spring Bias, Dome

Weight (approximate)

2.0 lbs / 0.9 kg
