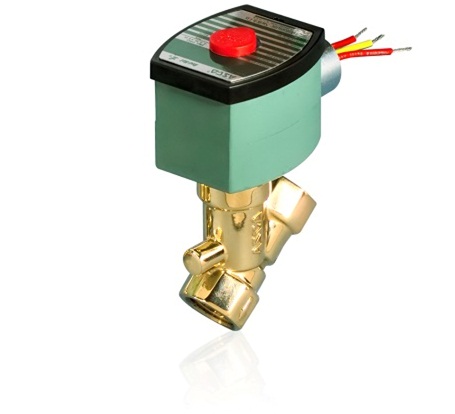

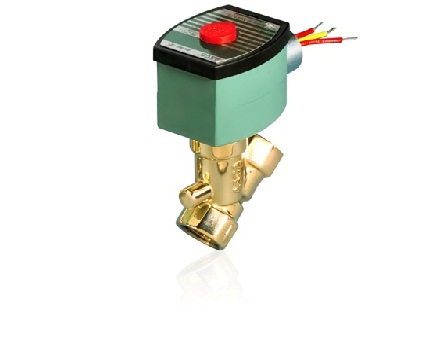

Asco - Van điện từ - 2 chiều: 2/2 - ASCO Series 030

Van điện từ - 2 chiều: 2/2 - ASCO Series 030

8030G003 120/60,110/50

Type:

Solenoid Valve

Body Material:

Brass

Media Type:

Air, Inert Gas;Water;Light Oil

Valve Actuation:

Solenoid

Voltage:

110 AC;120 AC

Max Ops Pressure(PSI):

2

Function:

2 way - 2/2 Normally Closed

Pipe Size:

3/4

Catalog Number:

8030G003 120/60,110/50

General Information:

Product Weight:

2.40 lb

Order Code:

20000

Shipping Weight:

2.60 lb

Kit Number:

302791

Listed In Catalog:

34

Operating Pressure Ratings:   PSI

Operating Air Pressure (Min-Max):

-2

Operating Water Pressure (Min-Max):

-2

Technical Information:

Actuation Method:

Solenoid - Direct Acting

Body Material:

Brass

Coil Class:

FT

Coil Number:

238610-032-D

I&M Pressure Vessel:

V_5507.pdf

I&M Solenoid:

V_6584_sec1.pdf
V_6584_sec2.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size:

3/4

Max Ambient Temperature:

125.00 F

Min Ambient Temperature:

32.00 F

Max Fluid Temperature:

180.00 F

Min Fluid Temperature:

32.00 F

Mounting Bracket(s):

OPTIONAL

Orifice Size:

3/4 in

Model Available:

8030G010 120/60,110/50

8030G013 120/60,110/50

8030G013VM 120/60,110/50

8030G016 120/60,110/50

8030G017 120/60

-------------------------------------
