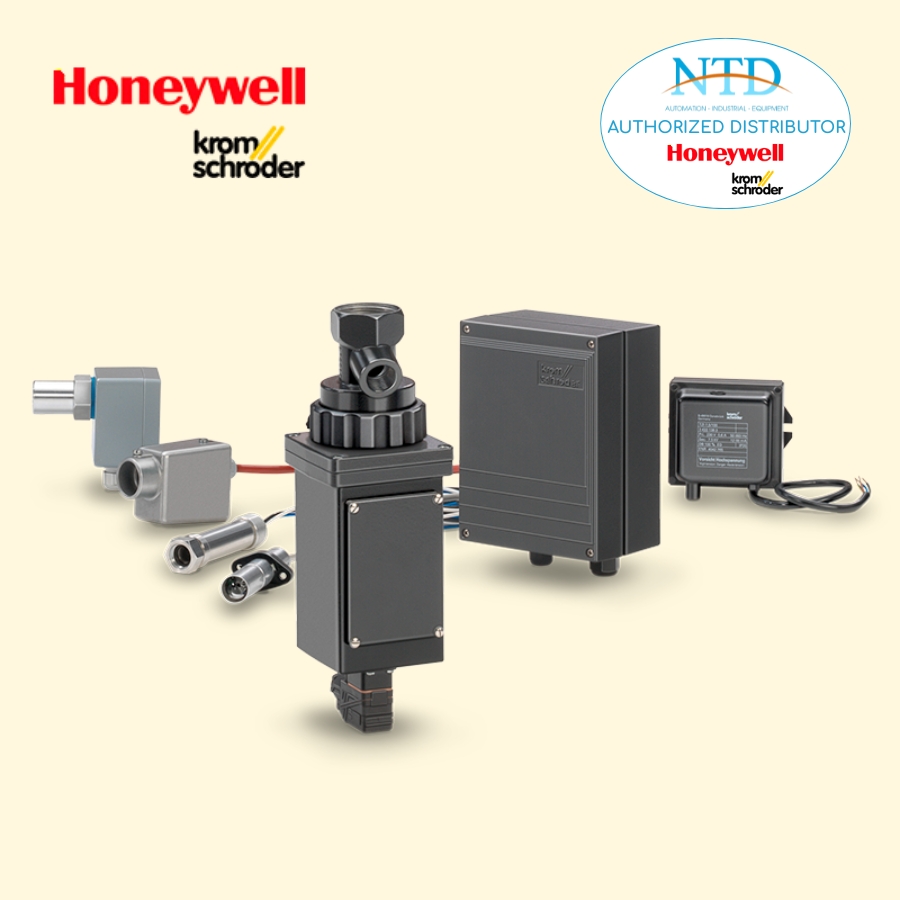

Thiết bị đánh lửa Further ignition- and control devices
Luôn đem đến sự an toàn, giá cả phải chăng và có độ tin cậy cao cho doanh nghiệp. Honeywell Kromschröder là một trong các nhà sản xuất nổi tiếng về lò công nghiệp.

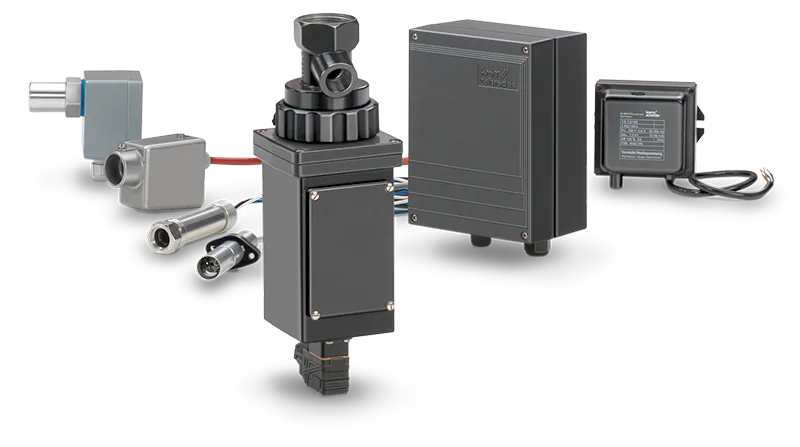

Thiết bị đánh lửa Further ignition- and control devices bao gồm:
+ UV sensor for continuous operation UVC, UVD
+ UV sensors UVS
+ Ignition and sensing electrodes FE, FZE
+ Ignition transformers TZI, TGI
Trong đó:
UV sensor for continuous operation UVC, UVD
UV flame detector UVC/UV sensor for continuous operation UVD for monitoring gas burners for intermittent or continuous operation in conjunction with burner control units BCU..U or PFU..U
UV sensors UVS
For monitoring gas burners of unlimited capacity with or without fan, on hot-air furnaces, gas-fired boilers, industrial furnaces and excess-gas flaring installations in conjunction with Honeywell Kromschröder bruner control units and automatic burner control units.
The US sensor UVS 10 monitors the gas burners in intermittent operation. The burners can either be ignited directly or operated as pilot and main burners.
US sensors UVS 1, UVS 6 and UVS 8 can be replaces by using various adapters.
Ignition and sensing electrodes FE, FZE
Electrodes for ignition and monitoring of gas burners, made of Kanthal A1, insulated or bare, with electrode holder.
Length: 300 to 1000 mm,
angular or straight electrode adapters, interference suppression possible,
diameter: 4 or 6 mm.
* Danh sách Ignition and sensing electrodes FE, FZE Kromschroder:
|
Name |
Model |
|
Ignition and sensing electrodes FE, FZE |
FE 200 34433320 FZE 300 34434610 FZE 400 34434612 FZE 500 34434613 FZE 600 34434614 FZE 300 insulated 74434610 FZE 400 insulated 74434612 FZE 500 insulated 74434613 FZE 600 insulated 74434614 Electrode holder for FE 75442337 Electrode holder for FZE 34453650 |
|
Crimping pliers for electrode rods Ø 3.5 mm for securing insulators |
Crimping pliers for electrode rods 74335278 |
Ignition transformers TZI, TGI
Ignition transformers for high-voltage ignition of gas or oil burners, suitable for ignition and control with one electrode,
TZI for cabinet installation, protection IP 20,
TGI for wall installation, protection IP 65.
Ignition voltage: 5 to 7.5 kV,
duty cycle: 20 to 33 % or continuous operation,
mains voltage: 115 V AC or 230 V AC.
* Danh sách Ignition transformers TZI, TGI:
|
Name |
Model |
|
For cabinet installation, enclosure IP 20 |
TZI 5-15/20W 84335623 TZI 5-15/100W 84331381 TZI 7-25/20W 84327455 TZI 7,5-20/33W 84326116 TZI 7,5-12/100W 84331383 TZI 5-15/20R 84335615 TZI 5-15/100R 84331382 TZI 7-25/20R 84335123 TZI 7,5-20/33R 84329111 TZI 7,5-12/100R 84331384 |
|
For on-site mounting, enclosure IP 65
|
TGI 5-15/100W 84391065 TGI 7-25/20W 84391080 TGI 7,5-20/33W 84391020 TGI 7,5-12/100W 84391045 TGI 5-15/100R 84391075 TGI 7-25/20R 84391090 TGI 7,5-20/33R 84391030 TGI 7,5-12/100R 8439105 |
|
Accessories |
Designation Order no. High-voltage cable FZLK 1/7, -5 to 80°C 04250409 High-voltage cable FZLSi 1/7, -50 to 180°C 0425041 |
