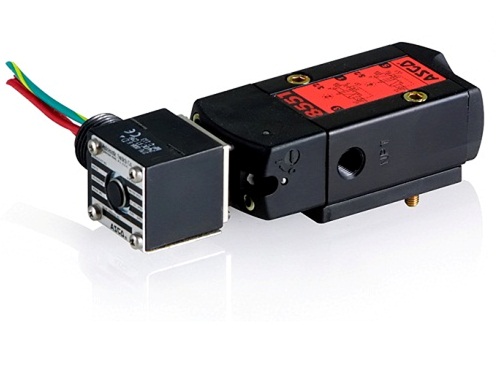

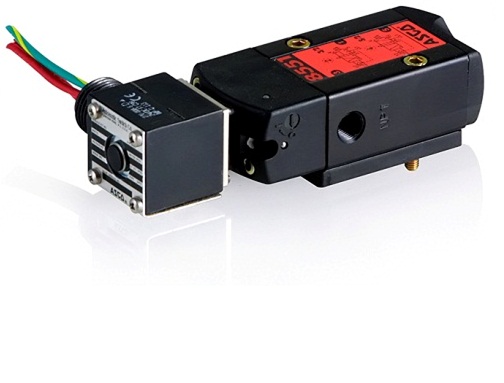

Asco - Van điện từ - 3 Way: 3/2 ASCO Series 551

Van điện từ - 3 Way: 3/2 - 4 Way: 5/2, 5/3 - Van Spool - ASCO Series 551

WT8551A001MS 120/60,110/50

Type:

Solenoid Valve

Body Material:

Aluminum

Media Type:

Air, Inert Gas

Valve Actuation:

Solenoid

Voltage:

110 AC;120 AC

Max Ops Pressure(PSI):

150

Function:

4 way

Pipe Size:

1/4

Catalog Number:

WT8551A001MS 120/60,110/50

General Information

Product Weight:

1.08 lb

Order Code:

21597

Shipping Weight:

2.18 lb

Operating Pressure Ratings:   PSI

Operating Air Pressure (Min-Max):

30-150

Technical Information:

Actuation Method:

Solenoid

Body Material:

Aluminum

Coil Class:

FT

Coil Number:

266763-902-D

I&M Pressure Vessel:

V_7418.pdf

I&M Solenoid:

V_6796.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size:

1/4

Max Ambient Temperature:

104.00 F

Min Ambient Temperature:

5.00 F

Max Fluid Temperature:

140.00 F

Min Fluid Temperature:

5.00 F

Orifice Size:

1/4

Model Available:

EF8551A001MS 24/DC

EF8551A001MS 120/60,110/50

WT8551A001MS 24/DC

SC8551A001MS 120/50-60

EV8551H309 24/DC
