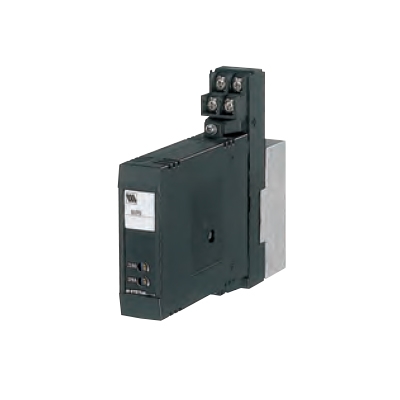

BPV  - P/I TRANSDUCER

BPV  - P/I TRANSDUCER

Functions & Features
• Converting a standard pneumatic signal into a proportional 4 – 20 mA DC output
• Monitor terminals
• High-density mounting
Typical Applications
• Converting a pneumatic system into a 4 – 20 mA for indicating and controlling in DCS system


MODEL: BPV–[1][2]

ORDERING INFORMATION
• Code number: BPV-[1][2]
Specify a code from below for each [1] and [2].
 (e.g. BPV-2/A2S/Q)
• Specify the specification for option code /Q
  (e.g. /C01/S01)

[1] PNEUMATIC CONNECTION
2: Rc 1/4"
5: Rc 1/8" fitting
7: 1/4" NPT fitting

[2] OPTIONS (multiple selections)
Input
blank: 0.2 – 1.0 kgf/cm2
/A1S: 19.6 – 98.1 kPa
/A2S: 20 – 100 kPa
/A3S: 20.7 – 103.4 kPa
/A2: 0.2 – 1.0 bar
/A3: 3 – 15 psig
Other Options
blank: none
/Q: Option other than the above (specify the specification)

SPECIFICATIONS OF OPTION: Q (multiple selections)
COATING (For the detail, refer to M-System's web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating
TERMINAL SCREW MATERIAL
/S01: Stainless steel

GENERAL SPECIFICATIONS
Construction: Plug-in
Connection
  Output: M3.5 screw terminals (torque 0.8 N·m)
  Pneumatic: Rc 1/4", Rc 1/8" or 1/4" NPT female
  (torque ≤ 12 N·m)
Material
 Housing: Flame-resistant resin (black)
 Base socket: Die cast aluminium
 Screw terminals: Nickel-plated steel(standard) or stainless
steel
Zero adjustment: -5 to +5 % (front)
Span adjustment: 95 to 105 % (front)

INPUT SPECIFICATIONS
■ Input
19.6 – 98.1 kPa, 0.2 – 1.0 kgf/cm2
20 – 100 kPa, 0.2 – 1.0 bar
20.7 – 103.4 kPa, 3 – 15 psig

OUTPUT SPECIFICATIONS
Output: 4 – 20 mA DC
Load resistance vs. supply voltage:
Load Resistance (Ω) = (Supply Voltage (V) – 12 (V)) ÷ 0.02 (A)     (including leadwire resistance)

INSTALLATION
Supply voltage: 12 – 28 V DC
Operating temperature: -10 to +60°C (14 to 140°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Mounting: Surface; Standard Rack Mounting Frame (BX-16H) available
Weight: 300 g (0.66 lb)

PERFORMANCE in percentage of span
Accuracy: ±0.3 %
Temp. coefficient: ±0.03 %/°C (±0.02 %/°F)
Response time: ≤ 0.5 sec. (0 – 90 %)
Permissible overrange: 196 kPa (2.0 kgf/cm2, 1.96 bar, 28 psig)

STANDARDS & APPROVALS
EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
RoHS Directive
  EN 50581

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
