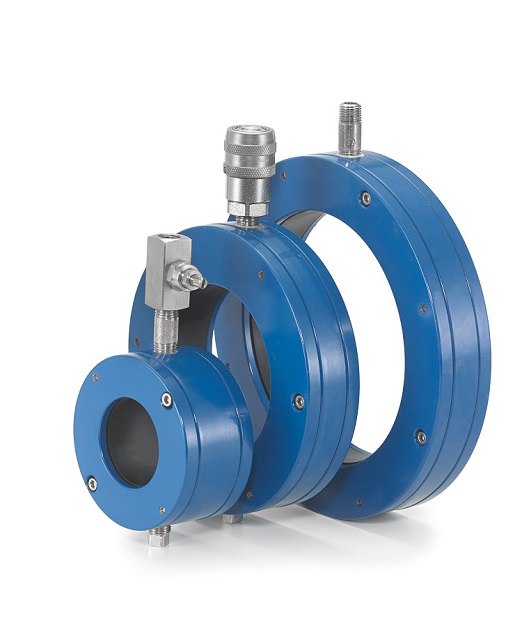

80 Wafer Isolation Ring

The Ashcroft^® 80 isolation ring is mounted inline with process piping. Used for process protection of measuring instruments, the ring-design eliminates process accumulation, assuring accurate pressure readings. Ideal when continuous pressure measurement is needed.

Key Features:

• 360° sensing flexible inner-liner; no process deadleg
• Safe Quick Release™ (optional) enables instrument removal without loss of fill or process shutdown
• Needle valve (optional) dampens pulsation effects
• Retrofit end plates (optional) allows easy replacement of other manufacturer models
• NSF-61 Compliant

Applications:

Process Market:

• Water and Wastewater
• Mining
• Pulp and Paper
