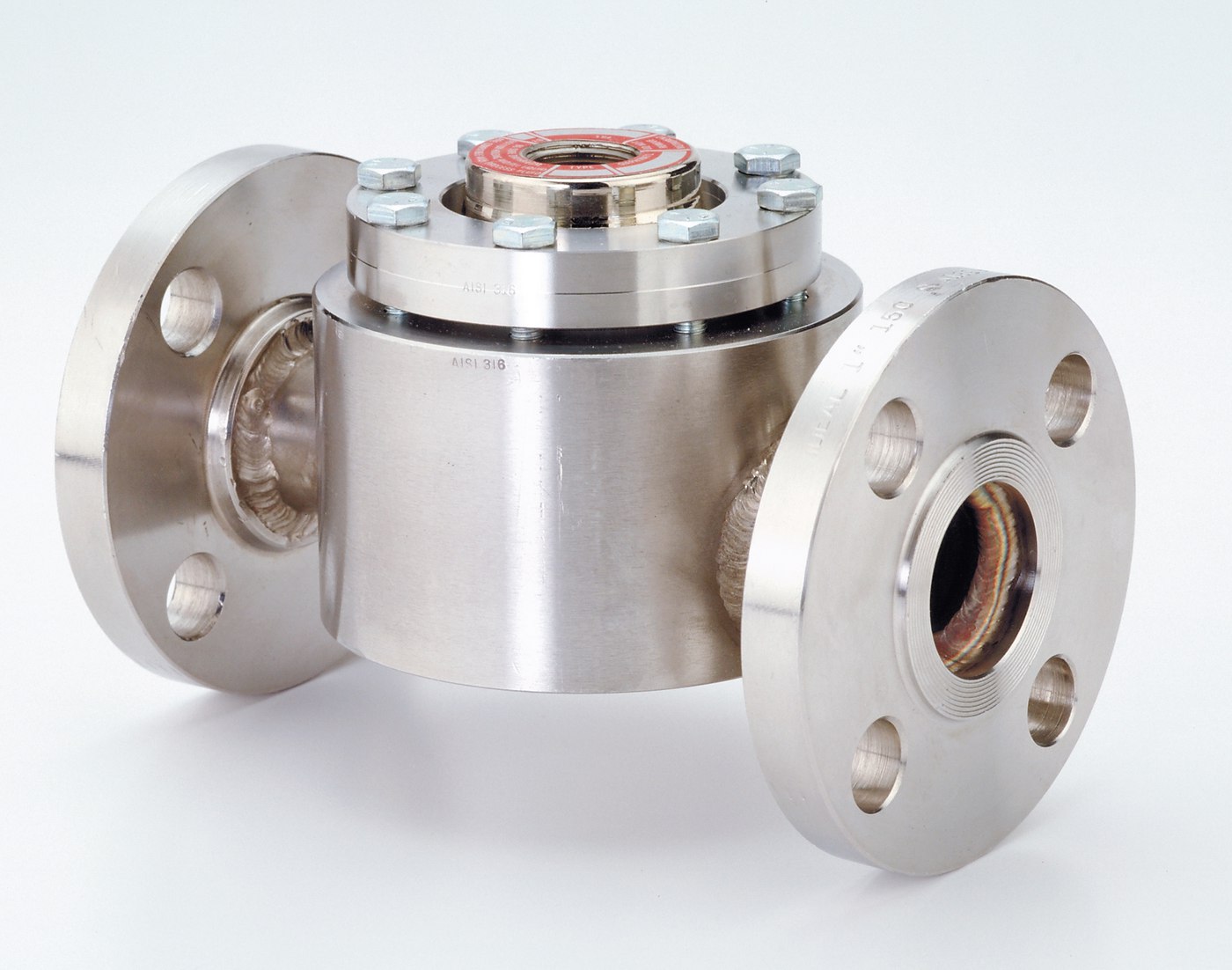

206 In-Line Flanged Diaphragm Seal

The Ashcroft^® 206 in-line flanged diaphragm seals protect pressure measuring instruments. Mounted in-line with the process piping, it is used in applications where continuous flow is required to prevent clogging. Its continuous-duty design prevents process fluid loss in the event the measuring instrument is removed or fails.

Key Features:

• 316L stainless steel top housing (standard)
• Wide selection of diaphragm and lower housing materials
• Diaphragm welded (metallic) or bonded (elastomer) to top housing

Applications:

Process Market:
Oil and Gas
Refineries
Chemical and Petrochemical
Water and Wastewater

Process Applications:
Oil and Gas Transportation-Pipelines
NACE Compliant Processes (sour gas separation)
Biogas and Biodiesel
