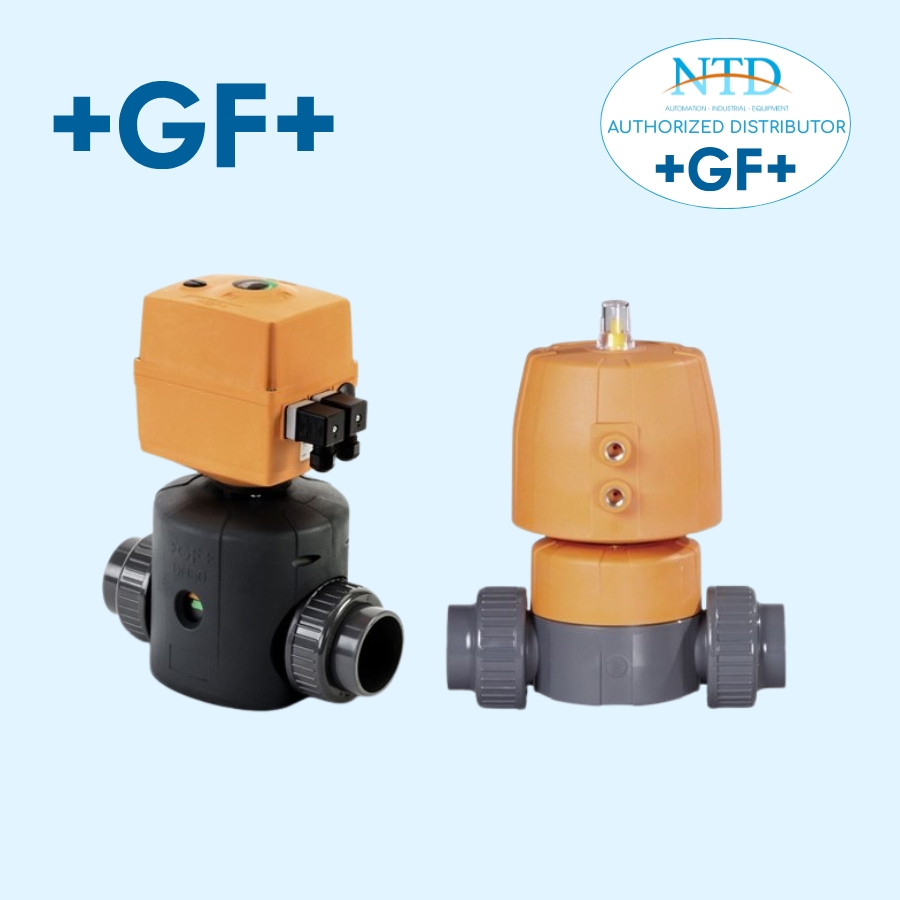

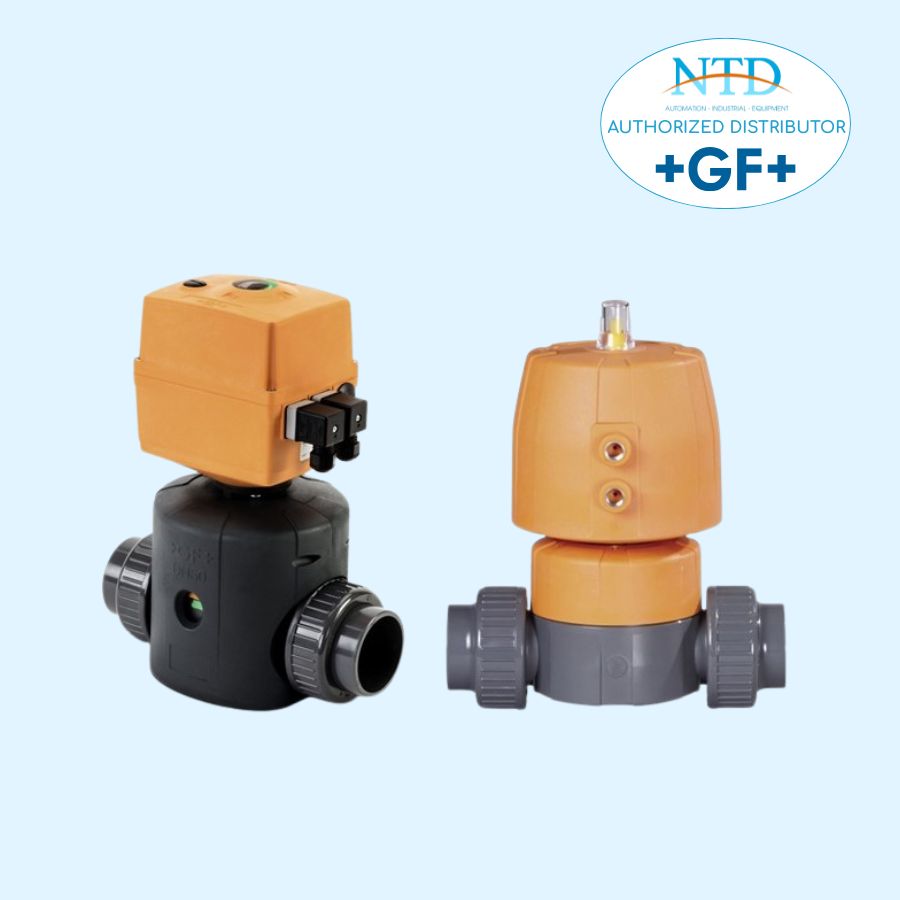

Van màng 3 chiều (3-way Diaphragm Valve)

Van màng 3 chiều (3-way Diaphragm Valve)

Liên hệ Còn hàng

Model: 519 GF, 514 GF
Thương hiệu: GF
Xuất xứ: Thuỵ Sĩ
Chính sách bán hàng
✅ Hàng chính hãng 100%
✅ Bảo hành & đổi trả do lỗi nhà sản xuất
✅ Giao hàng trên toàn quốc
✅ CO, CQ đầy đủ
✅ Tư vấn kỹ thuật, lắp đặt nhanh chóng

Phù hợp lý tưởng với nhiệm vụ kiểm soát dòng chảy và đóng / mở, van màng T là loại van không tĩnh có thể được sử dụng trong một loạt các ứng dụng. Không gian chết hầu như được loại bỏ xung quanh van nhờ thiết kế sáng tạo.

Diaphragm valve type 514 PVC-U

Mã Mô tả d (mm) DN (mm) Size (inch) PN (bar)

kv-100-value (l/min)
161704814 EPDM 32 25 1 10 442
161704817 EPDM 63 50 2 6 1575
161704834 PTFE/EPDM 32 25 1 10 442
161704837 PTFE/EPDM 63 50 2 6 1575

PROGEF Standard Diaphragm valve DIASTAR TenPlus

Mã Mô tả d (mm) d1 (mm) DN (mm) DN1 (mm) Size (inch) Valve Size d (mm) PN (bar) PN* (bar) kv-value (l/min)
167689101 EPDM 20 20 15 15 1/2 20 10 10* 57
167689103 EPDM 25 20 20 15 3/4 25 10 10* 89
167689104 EPDM 25 25 20 20 3/4 25 10 10* 118
167689107 EPDM 32 20 25 15 1 25 10 10* 80
167689108 EPDM 32 25 25 20 1 25 10 10* 105
167689109 EPDM 32 32 25 25 1 32 10 10* 231
167689112 EPDM 40 20 32 15 1 1/4 32 10 10* 85
167689118 EPDM 50 20 40 15 1 1/2 25 10 10* 86
167689119 EPDM 50 25 40 20 1 1/2 32 10 10* 160
167689120 EPDM 50 32 40 25 1 1/2 32 10 10* 206
167689125 EPDM 63 20 50 15 2 25 10 10* 84
167689126 EPDM 63 25 50 20 2 32 10 10* 150
167689127 EPDM 63 32 50 25 2 32 10 10* 184
167689301 PTFE/EPDM* 20 20 15 15 1/2 20 10 10* 57
167689303 PTFE/EPDM* 25 20 20 15 3/4 25 10 10* 89
167689304 PTFE/EPDM* 25 25 20 20 3/4 25 10 10* 118
167689307 PTFE/EPDM* 32 20 25 15 1 25 10 10* 80
167689308 PTFE/EPDM* 32 25 25 20 1 25 10 10* 105
167689309 PTFE/EPDM* 32 32 25 25 1 32 10 10* 231
167689312 PTFE/EPDM* 40 20 32 15 1 1/4 32 10 10* 85
167689318 PTFE/EPDM* 50 20 40 15 1 1/2 25 10 10* 86
167689319 PTFE/EPDM* 50 25 40 20 1 1/2 32 10 10* 160
167689320 PTFE/EPDM* 50 32 40 25 1 1/2 32 10 10* 206
167689325 PTFE/EPDM* 63 20 50 15 2 25 10 10* 84
167689326 PTFE/EPDM* 63 25 50 20 2 32 10 10* 150
167689327 PTFE/EPDM* 63 32 50 25 2 32 10 10* 184

PROGEF Natural Diaphragm valve type 519

Mã Mô tả d (mm) d1 (mm) DN (mm) DN1 (mm) Size (inch) kv-value (l/min) Valve Size d (mm) SDR PN (bar)
168519101 EPDM 20 20 15 15 1/2 57 20 11 6
168519103 EPDM 25 20 20 15 3/4 89 25 11 6
168519104 EPDM 25 25 20 20 3/4 118 25 11 6
168519107 EPDM 32 20 25 15 1 80 25 11 6
168519108 EPDM 32 25 25 20 1 105 25 11 6
168519109 EPDM 32 32 25 25 1 231 32 11 6
168519112 EPDM 40 20 32 15 1 1/4 85 32 11 6
168519115 EPDM 40 40 32 32 1 1/4 187 40 11 6
168519118 EPDM 50 20 40 15 1 1/2 86 25 11 6
168519119 EPDM 50 25 40 20 1 1/2 160 32 11 6
168519120 EPDM 50 32 40 25 1 1/2 206 32 11 6
168519125 EPDM 63 20 50 15 2 84 25 11 6
168519126 EPDM 63 25 50 20 2 150 32 11 6
168519127 EPDM 63 32 50 25 2 184 32 11 6
168519301 PTFE/EPDM* 20 20 15 15 1/2 57 20 11 6
168519303 PTFE/EPDM* 25 20 20 15 3/4 89 25 11 6
168519304 PTFE/EPDM* 25 25 20 20 3/4 118 25 11 6
168519307 PTFE/EPDM* 32 20 25 15 1 80 25 11 6
168519308 PTFE/EPDM* 32 25 25 20 1 105 25 11 6
168519309 PTFE/EPDM* 32 32 25 25 1 231 32 11 6
168519312 PTFE/EPDM* 40 20 32 15 1 1/4 85 32 11 6
168519315 PTFE/EPDM* 40 40 32 32 1 1/4 187 40 11 6
168519318 PTFE/EPDM* 50 20 40 15 1 1/2 86 25 11 6
168519319 PTFE/EPDM* 50 25 40 20 1 1/2 160 32 11 6
168519320 PTFE/EPDM* 50 32 40 25 1 1/2 206 32 11 6
168519325 PTFE/EPDM* 63 20 50 15 2 84 25 11 6
168519326 PTFE/EPDM* 63 25 50 20 2 150 32 11 6
168519327 PTFE/EPDM* 63 32 50 25 2 184 32 11 6

PROGEF Natural Diaphragm valve DIASTAR Ten

Mã Mô tả d (mm) d1 (mm) DN (mm) DN1 (mm) Size (inch) PN (bar) kv-value (l/min) SDR Valve Size d (mm) PN* (bar)
168629101 EPDM 20 20 15 15 1/2 10 57 11 20 6*
168629103 EPDM 25 20 20 15 3/4 10 89 11 25 6*
168629104 EPDM 25 25 20 20 3/4 10 118 11 25 6*
168629107 EPDM 32 20 25 15 1 10 80 11 25 6*
168629108 EPDM 32 25 25 20 1 10 105 11 25 6*
168629109 EPDM 32 32 25 25 1 10 231 11 32 6*
168629112 EPDM 40 20 32 15 1 1/4 10 85 11 32 6*
168629118 EPDM 50 20 40 15 1 1/2 10 86 11 25 6*
168629119 EPDM 50 25 40 20 1 1/2 10 160 11 32 6*
168629120 EPDM 50 32 40 25 1 1/2 10 206 11 32 6*
168629125 EPDM 63 20 50 15 2 10 84 11 25 6*
168629126 EPDM 63 25 50 20 2 10 150 11 32 6*
168629127 EPDM 63 32 50 25 2 10 184 11 32 6*
168629301 PTFE/EPDM* 20 20 15 15 1/2 10 57 11 20 6*
168629303 PTFE/EPDM* 25 20 20 15 3/4 10 89 11 25 6*
168629304 PTFE/EPDM* 25 25 20 20 3/4 10 118 11 25 6*
168629307 PTFE/EPDM* 32 20 25 15 1 10 80 11 25 6*
168629308 PTFE/EPDM* 32 25 25 20 1 10 105 11 25 6*
168629309 PTFE/EPDM* 32 32 25 25 1 10 231 11 32 6*
168629312 PTFE/EPDM* 40 20 32 15 1 1/4 10 85 11 32 6*
168629318 PTFE/EPDM* 50 20 40 15 1 1/2 10 86 11 25 6*
168629319 PTFE/EPDM* 50 25 40 20 1 1/2 10 160 11 32 6*
168629320 PTFE/EPDM* 50 32 40 25 1 1/2 10 206 11 32 6*
168629325 PTFE/EPDM* 63 20 50 15 2 10 84 11 25 6*
168629326 PTFE/EPDM* 63 25 50 20 2 10 150 11 32 6*
168629327 PTFE/EPDM* 63 32 50 25 2 10 184 11 32 6*

PROGEF Plus silicone free Diaphragm valve type 519

Mã Mô tả d d1 DN DN1 Size kv-value (Δp=1 bar) Valve Size d SDR PN
167519201 EPDM 20 20 15 15 1/2 57 20 11 10
167519203 EPDM 25 20 20 15 3/4 89 25 11 10
167519204 EPDM 25 25 20 20 3/4 118 25 11 10
167519207 EPDM 32 20 25 15 1 80 25 11 10
167519208 EPDM 32 25 25 20 1 105 25 11 10
167519209 EPDM 32 32 25 25 1 231 32 11 10
167519212 EPDM 40 20 32 15 1 1/4 85 32 11 10
167519215 EPDM 40 40 40 32 1 1/4 187 40 11 10
167519218 EPDM 50 20 40 15 1 1/2 86 25 11 10
167519219 EPDM 50 25 40 20 1 1/2 160 32 11 10
167519220 EPDM 50 32 40 25 1 1/2 206 32 11 10
167519225 EPDM 63 20 50 15 2 84 25 11 10
167519226 EPDM 63 25 50 20 2 150 32 11 10
167519227 EPDM 63 32 50 25 2 184 32 11 10
167519701 PTFE/EPDM* 20 20 15 15 1/2 57 20 11 10
167519703 PTFE/EPDM* 25 20 20 15 3/4 89 25 11 10
167519704 PTFE/EPDM* 25 25 20 20 3/4 118 25 11 10
167519707 PTFE/EPDM* 32 20 25 15 1 80 25 11 10
167519708 PTFE/EPDM* 32 25 25 20 1 105 25 11 10
167519709 PTFE/EPDM* 32 32 25 25 1 231 32 11 10
167519712 PTFE/EPDM* 40 20 32 15 1 1/4 85 32 11 10
167519715 PTFE/EPDM* 40 40 40 32 1 1/4 187 40 11 10
167519718 PTFE/EPDM* 50 20 40 15 1 1/2 86 25 11 10
167519719 PTFE/EPDM* 50 25 40 20 1 1/2 160 32 11 10
167519720 PTFE/EPDM* 50 32 40 25 1 1/2 206 32 11 10
167519725 PTFE/EPDM* 63 20 50 15 2 84 25 11 10
167519726 PTFE/EPDM* 63 25 50 20 2 150 32 11 10
167519727 PTFE/EPDM* 63 32 50 25 2 184 32 11 10

SYGEF Plus Diaphragm valve type 519

Mã Mô tả d d1 DN DN1 DN2 PN kv-value (Δp=1 bar) Size Valve Size d
180519301 PTFE/EPDM* 20 20 15 15 15 16 57 1/2 20
180519303 PTFE/EPDM* 25 20 20 15 20 16 89 3/4 25
180519304 PTFE/EPDM* 25 25 20 20 20 16 118 3/4 25
180519307 PTFE/EPDM* 32 20 25 15 20 16 80 1 25
180519308 PTFE/EPDM* 32 25 25 20 20 16 105 1 25
180519309 PTFE/EPDM* 32 32 25 25 25 16 231 1 32
180519312 PTFE/EPDM* 40 20 32 15 25 16 85 1 1/4 32
180519313 PTFE/EPDM* 40 25 32 20 25 16 119 1 1/4 32
180519314 PTFE/EPDM* 40 32 32 25 25 16 153 1 1/4 32
180519315 PTFE/EPDM* 40 40 32 32 25 16 187 1 1/4 32
180519318 PTFE/EPDM* 50 20 40 15 20 16 86 1 1/2 25
180519319 PTFE/EPDM* 50 25 40 20 25 16 160 1 1/2 32
180519320 PTFE/EPDM* 50 32 40 25 25 16 206 1 1/2 32
180519321 PTFE/EPDM* 50 40 40 32 50 16 524 1 1/2 63
180519322 PTFE/EPDM* 50 50 40 40 50 16 667 1 1/2 63
180519325 PTFE/EPDM* 63 20 50 15 20 16 84 2 25
180519326 PTFE/EPDM* 63 25 50 20 25 16 150 2 32
180519327 PTFE/EPDM* 63 32 50 25 25 16 184 2 32
180519328 PTFE/EPDM* 63 40 50 32 50 16 471 2 63
180519329 PTFE/EPDM* 63 50 50 40 50 16 610 2 63
180519330 PTFE/EPDM* 63 63 50 50 50 16 747 2 63
180519341 PTFE/EPDM* 90 20 80 15 25 16 82 3 32
180519342 PTFE/EPDM* 90 25 80 20 25 16 103 3 32
180519343 PTFE/EPDM* 90 32 80 25 25 16 129 3 32
180519345 PTFE/EPDM* 90 50 80 40 50 16 623 3 63
180519346 PTFE/EPDM* 90 63 80 50 50 16 696 3 63
180519351 PTFE/EPDM* 110 20 100 15 25 16 78 4 32
180519352 PTFE/EPDM* 110 25 100 20 25 16 103 4 32
180519353 PTFE/EPDM* 110 32 100 25 25 16 131 4 32
180519355 PTFE/EPDM* 110 50 100 40 50 16 604 4 63
180519356 PTFE/EPDM* 110 63 100 50 50 16 661 4 63

SYGEF Plus Diaphragm valve DIASTAR Sixteen

Mã Mô tả d d1 DN DN1 Size PN kv-value (Δp=1 bar) Valve Size d
180639301 PTFE/EPDM* 20 20 15 15 1/2 16 57 20
180639303 PTFE/EPDM* 25 20 20 15 3/4 16 89 25
180639304 PTFE/EPDM* 25 25 20 20 3/4 16 118 25
180639307 PTFE/EPDM* 32 20 25 15 1 16 80 25
180639308 PTFE/EPDM* 32 25 25 20 1 16 105 25
180639309 PTFE/EPDM* 32 32 25 25 1 16 231 32
180639312 PTFE/EPDM* 40 20 32 15 1 1/4 16 85 32
180639313 PTFE/EPDM* 40 25 32 20 1 1/4 16 119 32
180639314 PTFE/EPDM* 40 32 32 25 1 1/4 16 153 32
180639315 PTFE/EPDM* 40 40 32 32 1 1/4 16 187 32
180639318 PTFE/EPDM* 50 20 40 15 1 1/2 16 86 25
180639319 PTFE/EPDM* 50 25 40 20 1 1/2 16 160 32
180639320 PTFE/EPDM* 50 32 40 25 1 1/2 16 206 32
180639321 PTFE/EPDM* 50 40 40 32 1 1/2 10 524 63
180639322 PTFE/EPDM* 50 50 40 40 1 1/2 10 667 63
180639325 PTFE/EPDM* 63 20 50 15 2 16 84 25
180639326 PTFE/EPDM* 63 25 50 20 2 16 150 32
180639327 PTFE/EPDM* 63 32 50 25 2 16 184 32
180639328 PTFE/EPDM* 63 40 50 32 2 16 471 63
180639329 PTFE/EPDM* 63 50 50 40 2 16 610 63
180639330 PTFE/EPDM* 63 63 50 50 2 16 747 63
180639341 PTFE/EPDM* 90 20 80 15 3 16 82 32
180639342 PTFE/EPDM* 90 25 80 20 3 16 103 32
180639343 PTFE/EPDM* 90 32 80 25 3 16 129 32
180639345 PTFE/EPDM* 90 50 80 40 3 10 623 63
180639346 PTFE/EPDM* 90 63 80 50 3 10 696 63
180639351 PTFE/EPDM* 110 20 100 15 4 16 78 32
180639352 PTFE/EPDM* 110 25 100 20 4 16 103 32
180639353 PTFE/EPDM* 110 32 100 25 4 16 131 32
180639355 PTFE/EPDM* 110 50 100 40 4 10 604 63
180639356 PTFE/EPDM* 110 63 100 50 4 10 661 63

SYGEF Plus Diaphragm valve DIASTAR TenPlus

Mã Mô tả d d1 DN DN1 Size PN kv-value (Δp=1 bar) Valve Size d
181689301 PTFE/EPDM* 20 20 15 15 1/2 10 57 20
181689303 PTFE/EPDM* 25 20 20 15 3/4 10 89 25
181689304 PTFE/EPDM* 25 25 20 20 3/4 10 118 25
181689307 PTFE/EPDM* 32 20 25 15 1 10 80 25
181689308 PTFE/EPDM* 32 25 25 20 1 10 105 25
181689309 PTFE/EPDM* 32 32 25 25 1 10 231 32
181689312 PTFE/EPDM* 40 20 32 15 1 1/4 10 85 32
181689313 PTFE/EPDM* 40 25 32 20 1 1/4 10 119 32
181689314 PTFE/EPDM* 40 32 32 25 1 1/4 10 153 32
181689315 PTFE/EPDM* 40 40 32 32 1 1/4 10 187 32
181689318 PTFE/EPDM* 50 20 40 15 1 1/2 10 86 25
181689319 PTFE/EPDM* 50 25 40 20 1 1/2 10 160 32
181689320 PTFE/EPDM* 50 32 40 25 1 1/2 10 206 32
181689321 PTFE/EPDM* 50 40 40 32 1 1/2 10 524 63
181689322 PTFE/EPDM* 50 50 40 40 1 1/2 10 667 63
181689325 PTFE/EPDM* 63 20 50 15 2 10 84 25
181689326 PTFE/EPDM* 63 25 50 20 2 10 150 32
181689327 PTFE/EPDM* 63 32 50 25 2 10 184 32
181689328 PTFE/EPDM* 63 40 50 32 2 10 471 63
181689329 PTFE/EPDM* 63 50 50 40 2 10 610 63
181689330 PTFE/EPDM* 63 63 50 50 2 10 747 63
181689341 PTFE/EPDM* 90 20 80 15 3 10 82 32
181689342 PTFE/EPDM* 90 25 80 20 3 10 103 32
181689343 PTFE/EPDM* 90 32 80 25 3 10 129 32
181689345 PTFE/EPDM* 90 50 80 40 3 10 623 63
181689346 PTFE/EPDM* 90 63 80 50 3 10 696 63
181689351 PTFE/EPDM* 110 20 100 15 4 10 78 32
181689352 PTFE/EPDM* 110 25 100 20 4 10 103 32
181689353 PTFE/EPDM* 110 32 100 25 4 10 131 32
181689355 PTFE/EPDM* 110 50 100 40 4 10 604 63
181689356 PTFE/EPDM* 110 63 100 50 4 10 661 63
181689501 PTFE/FKM* 20 20 15 15 1/2 10 57 20
181689503 PTFE/FKM* 25 20 20 15 3/4 10 89 25
181689504 PTFE/FKM* 25 25 20 20 3/4 10 118 25
181689507 PTFE/FKM* 32 20 25 15 1 10 80 25
181689508 PTFE/FKM* 32 25 25 20 1 10 105 25
181689509 PTFE/FKM* 32 32 25 25 1 10 231 32
181689512 PTFE/FKM* 40 20 32 15 1 1/4 10 85 32
181689513 PTFE/FKM* 40 25 32 20 1 1/4 10 119 32
181689514 PTFE/FKM* 40 32 32 25 1 1/4 10 153 32
181689515 PTFE/FKM* 40 40 32 32 1 1/4 10 187 32
181689518 PTFE/FKM* 50 20 40 15 1 1/2 10 86 25
181689519 PTFE/FKM* 50 25 40 20 1 1/2 10 160 32
181689520 PTFE/FKM* 50 32 40 25 1 1/2 10 206 32
181689521 PTFE/FKM* 50 40 40 32 1 1/2 10 524 63
181689522 PTFE/FKM* 50 50 40 40 1 1/2 10 667 63
181689525 PTFE/FKM* 63 20 50 15 2 10 84 25
181689526 PTFE/FKM* 63 25 50 20 2 10 150 32
181689527 PTFE/FKM* 63 32 50 25 2 10 184 32
181689528 PTFE/FKM* 63 40 50 32 2 10 471 63
181689529 PTFE/FKM* 63 50 50 40 2 10 610 63
181689530 PTFE/FKM* 63 63 50 50 2 10 747 63
181689541 PTFE/FKM* 90 20 80 15 3 10 82 32
181689542 PTFE/FKM* 90 25 80 20 3 10 103 32
181689543 PTFE/FKM* 90 32 80 25 3 10 129 32
181689545 PTFE/FKM* 90 50 80 40 3 10 623 63
181689546 PTFE/FKM* 90 63 80 50 3 10 696 63
181689551 PTFE/FKM* 110 20 100 15 4 10 78 32
181689552 PTFE/FKM* 110 25 100 20 4 10 103 32
181689553 PTFE/FKM* 110 32 100 25 4 10 131 32
181689555 PTFE/FKM* 110 50 100 40 4 10 604 63
181689556 PTFE/FKM* 110 63 100 50 4 10 661 63
Tags:

Hỗ trợ trực tuyến

Email: sales@ntd-automation.com

Điện thoại: 0971.961.212

Mobile:

Tel:
