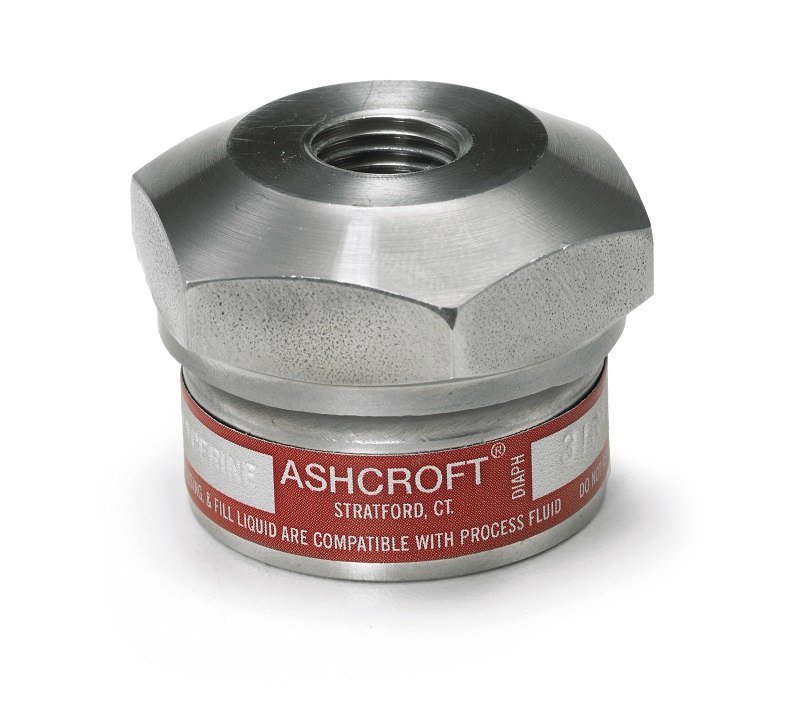

310-315 Mini-Diaphragm Seals

The Ashcroft^® 310 and 315 mini-diaphragm seals protect pressure measuring instruments. Used to ensure process compatibility, they are also applied when process media exhibit pulsation and the potential for plugging or freeze-up. An ideal choice for limited space installations.

Key Features:

• Compact and lightweight design
• All-welded construction
• Choice of diaphragm and lower housing materials
• Pressure rated up to 2,500 psi at 100°F
• Volumetric displacement allows attachment to: 3 1/2″ gauges (60 to 1,000 psi)
  transducers and switches

Applications:

Process Market:
Oil and Gas
Chemical and Petrochemical

Industrial Markets:
Engineered Systems (Instrument Skids)
Hydrogen Systems
