SPE Remote I/O BA8 Series

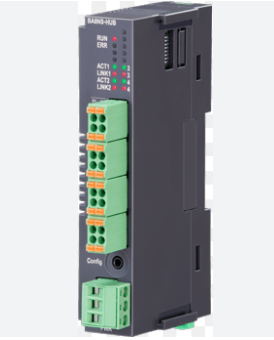

SPE REPEATER

Functions & Features
• Equipped with SPE (10BASE-T1L) port
• Dedicated repeater for SPE Remote I/O products of MG Co., Ltd.

MODEL: BA8NS-HUB-[1][2]

• Code number: BA8NS-HUB-[1][2]
Specify a code from below for each of [1] and [2].
  (e.g. BA8NS-HUB-R/CE/1)

[1] POWER INPUT

AC Power
M2: 100 – 240 V AC
(Operational voltage range 85 – 264 V, 47 – 66 Hz)
(‘/CE’ is not selectable for ‘Standards & Approvals’ code)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[2] OPTIONS (multiple selections)

Standards & Approvals
blank: Without CE
/CE: CE marking
Program Version (must be specified)
/1

• SPE Converter (model: BA8NS-CONV)

Construction: Stand-alone
Connection:
• Power
  Unit side connector: MSTB2,5/3-G (Phoenix Contact)
  Cable side connector: MSTB2,5/3-ST (Phoenix Contact)
  Applicable wire size: 0.2 - 2.5mm², stripped length 7mm
• 10BASE-T1L
  Unit side connector: in-house made
  Applicable connector: DFMC1,5/2-ST-3,5 (Phoenix Contact)
  (included in the package)
  Applpicable wire size: 0.2 - 1.5mm², stripped length 10mm
Isolation: SPE to power to FE

Number of port: 4
■ 10BASE-T1L
Communication standard: IEEE 802.3cg
Transmission speed: 10 Mbps
Transmission media: CAT5 2-wire twisted-pair
Maximum segment length: 1000 meters (standard value)

Power consumption
•AC:
 Approx. 2.2 VA at 100 V
 Approx. 2.7 VA at 200 V
 Approx. 3.3 VA at 264 V
•DC: Approx. 1 W
Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 10 to 90 %RH (non-condensing)
Ambience: No corrosive gas or heavy dust; no strong electric/magnetic field; no direct effect of vibration or physical impact
Mounting: DIN rail
Weight: 110 g (0.24 lb)

Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @1 minute
(SPE to power to FE)

The data shown below are of individual test pieces and do not guarantee all values.
• 10BASE-T1L transmission distance test
Used cable 1
Category 6 twisted pair cable from ELECOM
LD-CT6
Transmission distance: 970 m
Communication establishment time: Approx. 7 sec.
Used cable 2
Electric button telephone cable from TSUKO DKT-Q0.5-2P
Transmission distance: 600 m
Communication establishment time: Approx. 0.5 sec.

EU conformity:
EMC Directive
  EN 63044-5-1, EN 63044-5-3
RoHS Directive
