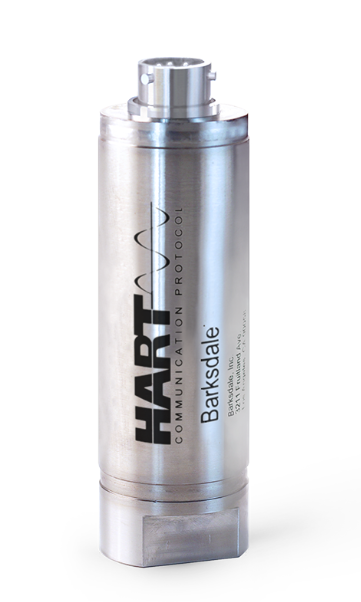

BiT Series 450E
Intrinsically Safe and Non-Incendive Pressure Transducers and Transmitters
Description
Barksdale Intelligent Transmitters (BiT), Series 450E and H450E are BiT's Intrinsically Safe Pressure Transducers and Transmitters. Barksdale has been manufacturing explosion proof pressure sensors for many years allowing their use in Class I Div 1 or Zone 0, 1 hazardous location. So why introduce an Intrinsically Safe (I.S.) model? Explosion proof wiring requires metal conduit and special explosion proof sealing glands and junction boxes which are not practical for equipment that needs to be quickly rigged or broken down to modular sections to transport on roads to the next location such as Drilling, Frac or other mobile equipment. I.S. protection concept allows use in the same hazardous areas as explosion proof only with the same flexible cables and electrical connections used in ordinary locations including industrial and military style connectors used on our BiT 450 ordinary location models. Maintenance of systems is greatly simplified with quick electrical disconnects and no expensive explosion proof boxes that are susceptible to scratches on sealing flame path surfaces during maintenance. Barksdale’s new intrinsically safe transducers and transmitters also include advanced Thin-Film and HART technology providing all of the advantages of our other models including high accuracy and long term stability.
Features
- Intrinsic safety certification with ATEX, IECEx and CSA approvals
- Lightweight, compact and all-welded rugged stainless steel construction
- High performance sensors
- Optional HART® communication protocol with diagnostics & field calibration, reducing maintenance time and cost; 10:1 turndown ratio for re-ranging, maintaining high accuracy and allowing one part number for multiple pressure ranges
- High accuracy: ±0.1% and 0.25% FSO, (L,H,R)
- Additional CSA certification for ordinary locations
- Factory sealed IP66 & IP67 and NEMA 4X enclosure
- CE, NACE compliant and superior EMC/EMI protection
- RoHS / REACH Compliant
Applications
- Drilling rig control & monitoring instrumentation
- Drilling and frac offshore equipment skids
- Production control systems
- Chemical injection systems
- Oil & gas pipelines
- Petrochemical plants
- Refineries
- Gas and oil fired power plants
- Hydraulic power units
- Gas transfers for fuel systems
- O&G process pumps
- Gas compressors
- Generators and turbines
INSTALLATION VIDEO AND INSTRUCTION OPERATION VIDEOS:
Click on the HART® communicator you are using to access the correct video.
Emerson 475 Field Communicator
DevCom2000 Device Communicator Installation
------------------------
