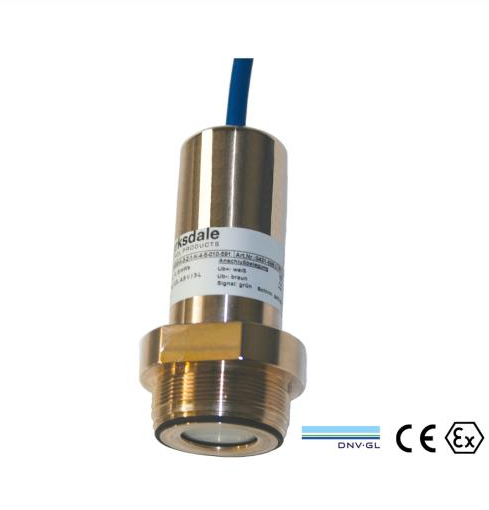

BLP1

BLP1

Level Sensor Probe for harsh environments

Description

The level sensors BLP1 have been specifically designed for rugged use in the maritime and offshore applications.
The housing material CuNiFe, a special copper-nickel alloy, combined with various mounting options, allows for their use with a wide range of media found in maritime environments, as well as with different tank, container, and basin configurations.

Features

• Accuracy acc. to IEC 60770 0.25% / 0.1% FSO
• Level probe made of CuNiFe alloy (1.4404 on request)
• Excellent seawater resistance
• Installation in tank as submersible probe with cable, with stainless steel pipe or with mounting bracket
• Installation outside the tank by means of threaded connection and optionally with adapter flange DN25 or DN50
• Due to flush measuring diaphragm even suitable for high viscosity media (removable protection cap)
• Low temperature error, long-term stability
• High resistance to electrical faults (incorrect wiring, short circuit and overvoltage)
• Rugged and reliable
• Option: Ex II 1G Ex ia IIB T4 Ga

Applications

• Ballast containers
• Fuel and oil tanks
• Service and waste water tanks
• Draft measuring systems
• Tank level measuring systems

BLP1 Level Sensor Probe

------------------------
