BLP2

BLP2

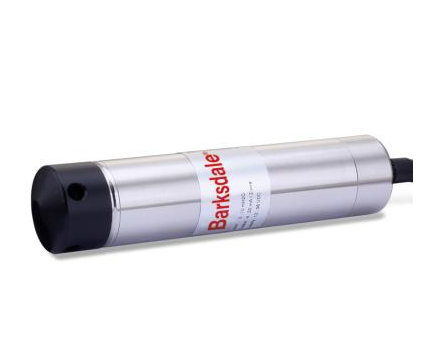

Level Sensor Probe for harsh environments

Description

The level transmitter BLP2 is designed for continuous level measurement in water or waste water applications.
Two versions are available with ceramic sensor or with stainless steel sensor. The accuracy, as per IEC 600770, is 0.5% FSO for ceramic and 0.1% / 0.35% / 0.5% FSO for stainless steel. Suitable for all fluids which are compatible with media wetted materials. Different cable and elastomer materials can be offered according to the customer-specific operating conditions.

Features

• Nominal pressure
  from 0 ... 4 mH2O up to 0 ... 250 mH2O (ceramic)
  from 0 ... 1 mH2O up to 0 ... 250 mH2O (stainless steel)
• Output signals
  2-wire: 4 ... 20 mA
  3-wire: 0 ... 20 mA / 0 ... 10 V
• Diameter 27 mm (ceramic), 26.5 mm (stainless steel)
• Good linearity
• Good long term stability

Applications

• Ballast containers
• Fuel and oil tanks
• Service and waste water tanks

BLP2 Level Sensor Probe

------------------------
