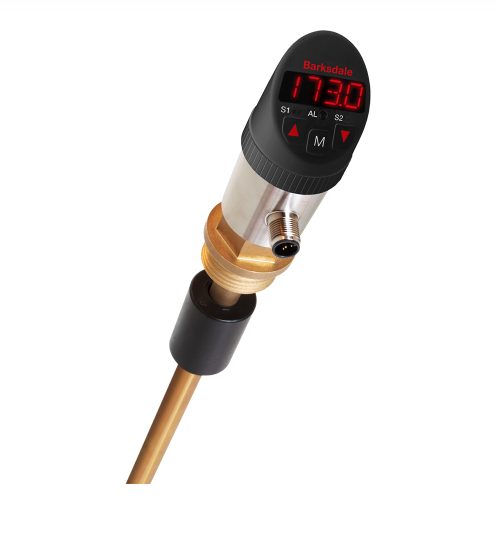

BLS2000 Dual Level Switch

BLS2000 Dual Level Switch

Electronic Dual Level Switch

Description

The electronic dual level switch is capable of measuring media with a density < 0.6g/cm³. The BLS2000 is equipped with a fitting and tube made of brass, making it an economic solution.
The resolution is 8 or 12 mm. With regard to the total length (L0) available, lengths between 250 and 3000 mm can be ordered.

Features

• Resolution: 8 or 12 mm

• Redundant measurement system
• Direct measurement
• Capable of measuring media of density < 0.6g/cm³
• Total length (L0): 250 - 3000 mm
• Max. 2 switch points
• Analogue output 4 - 20 mA or 0 - 10 V
• Rotatable 320° display & electrical connection
• Menu navigation refers to VDMA standard

Applications

Level control for

• Hydraulics
• Lubrication systems
• Cooling

BLS2000 Dual Electronic Level Switch

------------------------
