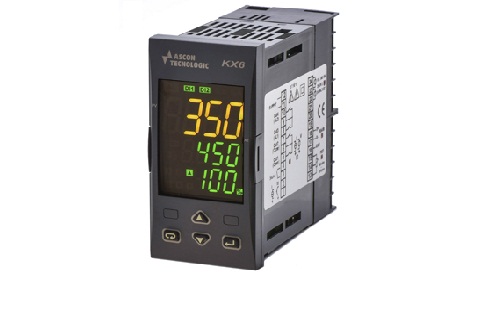

Bộ Điều Khiển KX6

Servomotor controller

• Dimensions 48 x 96 mm (1/8 DIN), depth 89 mm
• Front protection degree IP54, with gasket
• Triple LED display:
  - Upper display: 4 digit, 3 dynamic colours red, green and amber or a fixed color selectable, h 15.5 mm
  - Central display: 4 digit, green colour, h 10 mm
  - Lower display: 2 digit and half, green colour, h 10 mm
• 1 input for temperature probes: tc J, K, S, R, T, J, normalized signals 0/4 ... 20 mA
• Accuracy: ± 0.5% of span ± 1 digit; tc S ± 1% of span ± 1 digit
• 1 input for potentiometer 100 ohm... 10k ohm (optional)
• 1 digital input for free voltage contacts
• 1 digital input for voltage contacts (24 VAC/VDC or 100/230 VAC) (optional)
• Power supply: 100 ... 240 VAC / VDC (-15% / +10%) Frequency: 50/60 Hz
• Outputs:
  - OUT1: Relay SPST-NO 2A/240 Vac (for servomotor drive) or analogue galvanically isolated 0/4... 20 mA, 0/2... 10V
  - OUT2: Relay SPST-NO 2A/240 Vac (for servomotor drive)
  - OUT3: Relay SPST-NO 2A/240 Vac
  - OUT4: min@15 mA ±10%">Relay SPST-NO 2A/240 Vac
• 2 configurable alarms as absolute, deviation and band
• 4 selectable Set Point
• Serial Communications: TTL (standard) + RS 485 (optional) isolated, MODBUS RTU (JBUS)
• Communication speed: 1200... 38400 baud
• PID control with single action (direct or reverse) for SERVOMOTOR drive or linear (mA/V), PID double action, ON/OFF, ON/OFF Neutral Zone, Autotune EVO-tune, Overshoot control
• Self-calibration potentiometer
• Self-paced running time servomotor
• EVOgreen function: stand by mode of display (selectable)
• Connections: 24 screw terminals 2.5 mm ² (AWG14 AWG22. ..) fix type

KX6 - Datasheet
