Ascon - Bộ Điều Khiển X5

Liên hệ Còn hàng

Hãng Sản Xuất: Ascon

Xuất Xứ: Italy

Tình Trạng: Còn Hàng

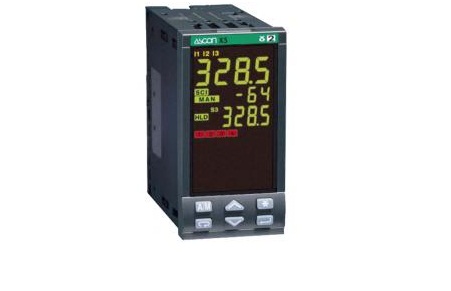

Bộ Điều Khiển X5



1/8 DIN Process controller with PROFIBUS DP and Modbus RTU Master/Slave

- Panel mount controller 48 x 96 mm
- 1 Configurable input
- 1 Auxiliary input
- Up to 4 digital outputs
– Up to 2 analogue outputs
- ON/OFF , PID single or double action,
      floating servomotor controller with
    *  Remote setpoint
    *  2 memorized setpoints
    *  2 prog. 16 seg. programmer
    *  (optional)
- RS 485 ModBus RTU
    * (Master and / or Slave ) port (optional)
- 1 field bus port to Profibus-DP (optional)
- 2 Display lines:
      4 digits (PV) h: 12 mm
      4 digits (SP) h: 9 mm
      4 digits (SP) h: 9 mm
      4 digits (OP%) h: 7 mm
      Green colour

Process inputs:

1 Universal input

- Thermocouples:
      L, J, T, K, S, R, B, N, E, Ni-NiMo, W3, W5
- RTD: Pt100
- Voltage (V):  0/1...5 V, 0...10V
- Voltage (mV): 0/10...50 mV
- Current (mA): 0/4...20 mA
- Custom linearisation and IR probes (J.K type)
Accuracy :
 - 0.25% ±1 digit (probes)
 - 0.1% ±1 digit (mA or mV)

Auxiliary input

Note 1
- Voltage (V):  0/1...5 V, 0...10V
- Current (mA): 0/4...20 mA
- Potentiometer: 100Ω ... 10 kΩ

3 digital inputs

- Free Voltage
Frequency input (Optional )(Note 1): Configurable range 0...2000 Hz, 0...20000 Hz

Keyboard

Mechanical: 6 multifunction keys

Process outputs

1 High level analogue output:

- For process control
- For PV/SP retransmission
- Voltage (V): 0...10 V, 0...5V, 0...1V
- Current (mA): 0/4...20 mA

1 High level analogue output(optional):

- For process control
- For PV/SP retransmission
- Voltage (V): 0...10 V, 0...5V, 0...1V
- Current (mA): 0/4...20 mA

Up to 4 Digital outputs:

OUT1/OUT2
- RELAY SPST-NO, 2A/250Vac
- TRIAC 1A 250 VAC
OUT3
- RELAY SPDT, 2A (250VAC)
OUT4
- RELAY SPST-NO, 2A/250Vac
- SSR Drive 0...5Vdc, ±20%, 30 mA Max

Power supply:

- 24VDC/VAC
- 100… 240 Vac (50/60 Hz)
Transmitter power supply: 24 Vdc ±20%, 30 mA Max

Functions

- ON/OFF control
- PID single action or double action (Heat/Cool)
- Floating servomotor
- Auto/Man station with bumpless action
- Start-up + Timer (optional)
- Remote setpoint
- 2 memorized setpoints
- 4 programs, 16 segment programmer (optional)
- Mathematical Package (optional)

Autotuning

- Autotuning with natural frequency
- Autotuning with step response
- Adaptive Autotuning

Alarms

- Up to 3 configurable alarms

Communication and programming:

Interfaces

- RS 485 port with ModBus RTU and J-bus (slave) protocols (optional)
- RS 485 port with ModBus RTU and J-bus (Master) protocols (Optional)
- 1 field bus port to Profibus-DP

Programming/configuration tools:

Fast View for immediate and easy access to 10 selectable parameters
- Easy to use front interface for configuration
- Configuration software available for PC

Installation

Mounting method: panel mount
Case dimensions: 48 x 96 mm (1/8 DIN )

Connections

Communication port connection
- 1 Profibus-DP por on additional D sub connector Signals connection
36 poles 5.5 mm² screw terminals block
Protection factor: IP 65 front protection

Display and indicators

3 Display lines, 4 digits (PV) h: 12 mm, 4 digits (SP) h: 9 mm, 2 digits (OP) h: 7 mm, green colour
8 status + 3 Alarm + 2 control output LEDs

Connectable to:

- SCADA for monitoring, traceability and remote management
- DX and DY gateways for remote monitoring

Notes

1 ) Frequency input is not available with Remote setpoint



X5 - Datasheet

X5 - User Manual
