Huba - Cảm Biến Áp Suất 506
Cảm Biến Áp Suất 506
-0.5 ... 7 - 60 bar

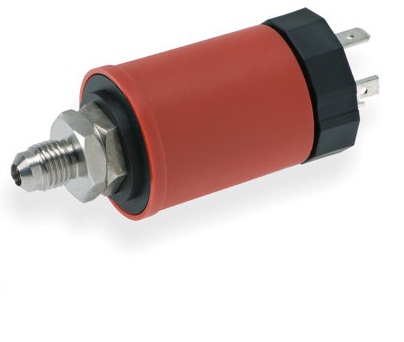

The pressure transmitter type 506 with proven ceramic technology, features adjusted and amplified sensor signals which are available as standardised current outputs. The pressure sensors are specially developed for use in the industrial refrigeration technology.
Fixed order quantities on request
|
Medium |
Refrigerants |
|
Pressure range |
-1 ... 7 – 60 bar |
|
Output |
0 ... 5 V, 1 ...6 V, 0 ... 10 V, 4 ... 20 mA ratiom. 10% ... 90%, |
|
Accuracy |
< 0.5% fs |
|
Electrical connection |
Connector DIN EN 175301-803-A or C, M12x1 Cable 1.5 m |
|
Pressure connection |
Inside thread or outside thread |
Compact construction
Automated manufacture in large quan tities for ideal price / performance ratio
Rugged ceramic sensor technology
No mechanical creepage
High resistance to extreme temperatures
