Huba - Cảm Biến Áp Suất 511
Hãng Sản Xuất: Huba
Xuất Xứ: Thụy Sĩ
Tình Trạng: Còn Hàng

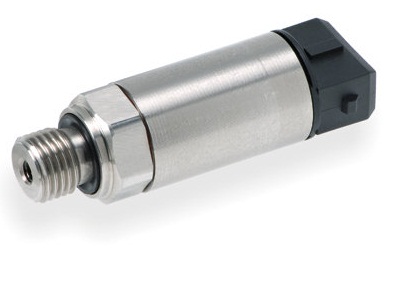

Cảm Biến Áp Suất 511
-1 ... 0 - 600 bar
These compact OEM pressure transmitters type 511 meet the highest specification for mechanical stress, EMC compatibility, and operational reliability, which means that this range is particulary suitable for all demanding industrial applications. This sensor utilises a ceramic technology, developed by Huba Control and for the last 20 years, in millions of applications, used in combination with unique integrated electronic design, means that the type 511 series has a high degree of accuracy for all temperature ranges. These units are available in small or production quantities, with an excellent price to performance ratio.
Fixed order quantities on request
|
Medium |
Liquids and gases |
|
Pressure range |
-1 ... 0 – 600 bar |
|
Output |
0 ... 5 V, 1 ... 6 V, 0 ... 10 V, 4 ... 20 mA |
|
Accuracy |
< 0.5% fs |
|
Electrical connection |
Cable 1.5 m, swift connector, AMP JPT, M12x1, connector DIN EN 175301-803-C |
|
Pressure connection |
Inside thread or outside thread |
Compact and rugged construction for highest operational reliability
No media egress when exceeding rupture pressure
Negligible temperature influence on accuracy
Excellent EMC capacity
Saving time by quick cable mounting by the customer with swift connector
