Huba - Cảm Biến Áp Suất 522

Liên hệ Còn hàng

Hãng Sản Xuất: Huba

Xuất Xứ: Thụy Sĩ

Tình Trạng: Còn Hàng

Thông tin sản phẩm

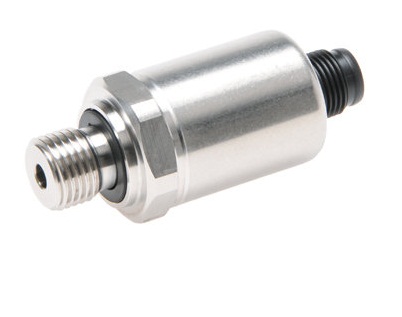

Cảm Biến Áp Suất 522
0 ... 2.5 – 600 bar

The compact type 522 pressure transmitter for shipbuilding is based upon the Huba Control developed thick film technology where the pressure measuring cell is fully welded.

The pressure measuring cell incorporates a fully welded construction within the transducer housing. Highest requirements in various applications concerning burst can be met.

All pressure transmitters of type 522 have the most important certifications for the shipbuilding industry.

Medium	Liquids, gases and refrigerants
Pressure range	0 ... 2.5 – 600 bar
Output	0 ... 10 V, 4 ... 20 mA
Accuracy	typ. < 0.3% FS
Electrical connection	Connector DIN 175301-803-A, M12x1, swift connector
Pressure connection	Inside thread or outside thread

Compact, rugged construction

Welded without sealing parts

Certified for shipbuilding with: Germanischer Lloyd; American Bureau of Shipping; Bureau Veritas; Det Norske Veritas; Lloyd`s Register

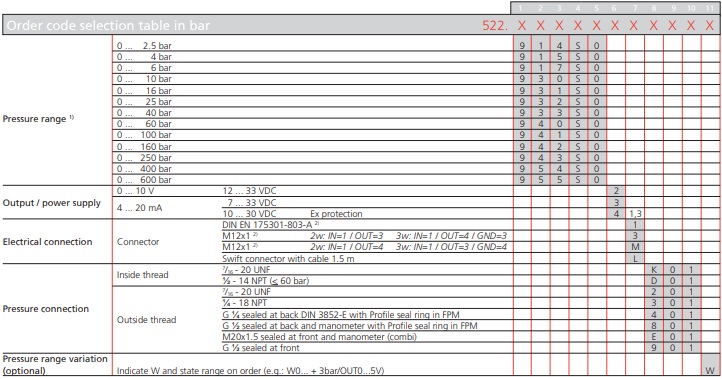

SELECTION

-------------------------------------
