Huba - Cảm Biến Áp Suất 525
Hãng Sản Xuất: Huba
Xuất Xứ: Thụy Sĩ
Tình Trạng: Còn Hàng
Cảm Biến Áp Suất 525
0 ... 0.05 – 0.6 bar

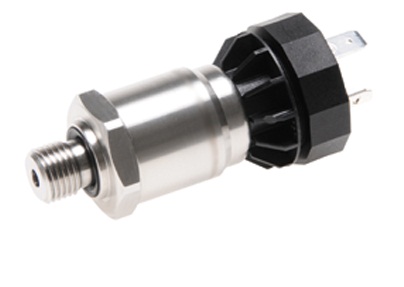

The pressure transmitter type 525 has a compact and robust design and a very high measurement accuracy.
The pressure transmitter with it’s large variety of pressure- and electrical connection has also pressure ranges from 50 mbar full scale.
The compact 525 pressure transmitter is based upon the well proven ceramic technology developed by Huba Control over 20 years ago.
|
Medium |
Liquids and gases |
|
Pressure range |
0 ... 0.05 – 0.6 bar |
|
Output |
0 ... 5 V, 0 ... 10 V, 4 ... 20 mA ratiom. 10 ... 90% |
|
Accuracy |
± 0.35% fs |
|
Electrical connection |
Connector DIN 175301-803-A or C, M12x1, swift connector |
|
Pressure connection |
Inside thread or outside thread |
Compact, rugged construction
Very high measurement accuray
Excellent thermal characteristic
Pressure ranges from 50 mbar full scale available
Large selection of connections available

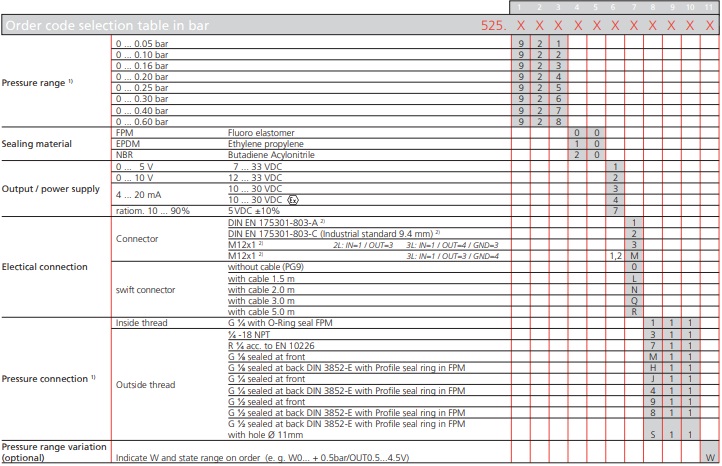

SELECTION
-------------------------------------
