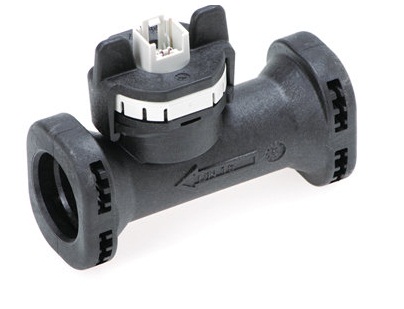

Huba - Cảm Biến Lưu Lượng 200
Hãng Sản Xuất: Huba
Xuất Xứ: Thụy Sĩ
Tình Trạng: Còn Hàng
Cảm Biến Lưu Lượng 200
0.5 ... 150 l/min
The vortex flow sensor type 200 is based on the Kármán vortex street. You can choose between various versions as integrated temperature measurement. This flow sensor without moving parts is insensitive to pollution and persuade by very few loss of pressure and a very high accuracy.
Fixed order quantities on request
Medium |
Fluides |
Flow range |
0.5 ... 150 l/min |
Output |
Frequency output 12 ... 483 Hz |
Nominal diameters |
DN 6 / 8 / 10 / 15 / 20 / 25 |
Electrical connection |
Connector RAST 2.5, M12x1 |
Temp. measurment |
NTC / PT1000 |
Low cost product with high levels of accuracy
Temperature non-sensitive measuring principle
Excellent media resistance (measuring element not in contact with the media)
Marginal loss of pressure
Measuring element not sensitive to debris
Direct temperature measurement in the medium with PT1000 or NTC
Drinking water approval KTW, W270, WRAS, ACS
Wide application temperature range
