Huba - Cảm Biến Lưu Lượng 210
Hãng Sản Xuất: Huba
Xuất Xứ: Thụy Sĩ
Tình Trạng: Còn Hàng

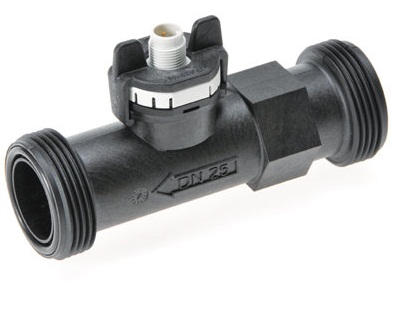

Cảm Biến Lưu Lượng 210
0.5 ... 150 l/min
In comparison to the OEM flow sensor (type 200) the type 210 is available with a larger variety concerning power supply and outputs. You can choose between various versions as integrated temperature measurement. This flow sensor without moving parts is insensitive to pollution and persuade by very few loss of pressure and a very high accuracy.
|
Medium |
Fluides |
|
Flow range |
0.5 ... 150 l/min |
|
Output |
Frequency output 12 ... 483 Hz |
|
Nominal diameters |
DN 6 / 8 / 10 / 15 / 20 / 25 |
|
Electrical connection |
Connector RAST 2.5, M12x1 |
|
Temp. measurment |
PT1000, 0 ... 10 V |
Flow measuring with voltage, current, pulse or frequency output
Excellent media resistance (measuring element not in contact with the media)
Available with integrated temperature measurement
Temperature non-sensitive measuring principle
Wide application temperature range
Marginal loss of pressure
Measuring element not sensitive to debris
Drinking water approval KTW, W270, WRAS, ACS
