Huba - Cảm Biến Lưu Lượng 212
Hãng Sản Xuất: Huba
Xuất Xứ: Thụy Sĩ
Tình Trạng: Còn Hàng

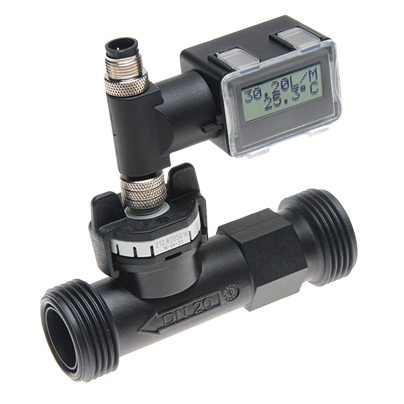

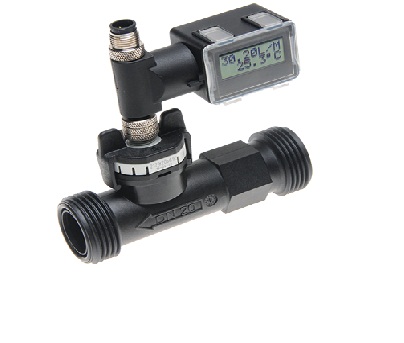

Cảm Biến Lưu Lượng 212 with display
0.5 ... 150 l/min
The flow sensor type 212 is based on the Kármán vortex trail. Vortex trail principle. This flow sensor convinces due to the additional digital indicating device which shows the flow rate and the media temperature. The type 212 is available with and without temperature measurement.
With no moving parts the flow sensor is not sensitive to debris, has marginal pressure loss and high accuracy.
|
Medium |
Fluides |
|
Flow range |
0.5 ... 150 l/min |
|
Output |
4 ... 14.5 mA, 4 ... 20 mA |
|
Nominal diameters |
DN 6 / 8 / 10 / 15 / 20 / 25 |
|
Electrical connection |
M12x1 |
Flow measuring with immediate display of flow measuring range and medium temperature
Excellent media resistance (measuring element not in contact with the media)
Available with integrated temperature measurement
CE conformity
Marginal loss of pressure
Measuring element not sensitive to debris
Drinking water approval
Temperature non-sensitive measuring principle
