Huba - Cảm Biến Lưu Lượng 235
Hãng Sản Xuất: Huba
Xuất Xứ: Thụy Sĩ
Tình Trạng: Còn Hàng

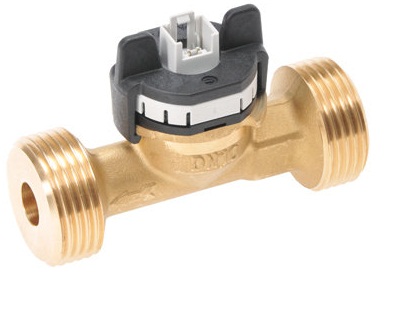

Cảm Biến Lưu Lượng 235
0.9 ... 240 l/min
The difference between flow sensor type 235 and type 200 is the version of the case. The flow sensor type 235 is based on the Kármán vortex street. You can choose between various versions as integrated temperature measurement. This flow sensor without moving parts is insensitive to pollution and persuade by very few loss of pressure and a very high accuracy.
|
Medium |
Fluides |
|
Flow range |
0.9 ... 240 l/min |
|
Output |
Frequency output 9 ... 479 Hz |
|
Nominal diameters |
DN 10 / 15 / 20 / 25 / 32 |
|
Electrical connection |
Connector RAST 2.5, M12x1 |
Low cost product with high levels of accuracy
Temperature non-sensitive measuring principle
Excellent media resistance (measuring element not in contact with the media)
Wide application temperature range
Marginal loss of pressure
Measuring element not sensitive to debris
Direct temperature measurement in the medium with PT1000 or NTC
Drinking water approval WRAS, ACS
Tài Liệu
-------------------------------------
