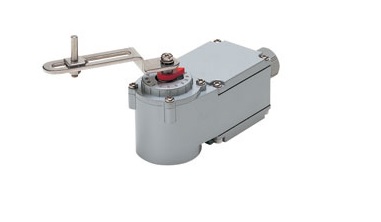

Cảm Biến Vị Trí, Model: VOS2T-X2R0-X
Position sensor,
Model: VOS2T-X2R0-X
2-WIRE POSITION TRANSMITTER
(linear motion type; 45 degrees)
Functions & Features
• Detecting stroke positions of a valve actuator or moving positions of other mechanisms and transmits standard 4 to 20 mA DC proportional to the position
• Light weight and compact design
• High resolution
• Excellent reliability & durability
• Field selectable direct or reverse action
• Rugged enclosure
MODEL: VOS2T–[1][2][3][4]
ORDERING INFORMATION
• Code number: VOS2T-[1][2][3][4]
Specify a code from below for each [1] through [4].
(e.g. VOS2T-11R0)
[1] LEVER
1: Stroke 10 – 30 mm (0.39" – 1.18")
2: Stroke 30 – 100 mm (1.18" – 3.94")
3: Stroke 25 – 60 mm (0.98" – 2.36")
[2] LEVER POSITION
1: Upper side
2: Lower side
[3] RETURN SPRING
0: None
L: Counterclockwise return (Seen from the lever side)
R: Clockwise return (Seen from the lever side)
[4] WIRING CONDUIT
0: G 1/2
1: 1/2" NPT fitting
2: G 1/2 with cable connector
4: Cables connected (approx. 1 meter or 3.3 ft)
Cảm biến vị trí, Model: VOS2T
Model thông dụng:
1. Cảm biến vị trí : VOS2T-12RO
INPUT : -22,5 - 22,5
OUTPUT : 4 - 20mA DC
2. Cảm biến vị trí : VOS2T-32R0
Input: -22.5 ~22.5 o
Output: 4-20 mA
Power: 15- 28 VDC
