Huba - Công Tắc Áp Suất Cơ 605
Hãng Sản Xuất: Huba
Xuất Xứ: Thụy Sĩ
Tình Trạng: Còn Hàng

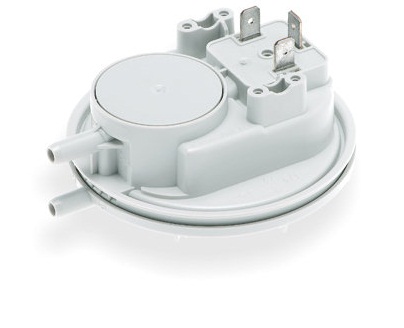

Công Tắc Áp Suất Cơ 605
20 ... 400 Pa
Type 605 pressure switches are specially developed for use in gas fired heating systems. There are more than 40 million switches in use worldwide. Produced on a fully automated production line. High setting accuracy and reproducibility, combined with excellent reliability characterise a quality of switch above the industry norm.
Fixed order quantities on request
|
Medium |
Air and neutral gases |
|
Pressure range |
20 ... 400 Pa |
|
Electrical connection |
Flat connector 6.3 or 4.8 mm |
|
Pressure connection |
Hose connector Ø 6.2 mm |
Fitting of the switch; Fast mounting with snap bracket system
Adjusting security
High contact strength (typically 10 cN); Essentially less susceptibility to polution of contact
Diaphragm design / material; Better long term stability achieved though the use of a 2 component silicon diaphragm; Unique trapezoid diaphragm design provides for a better contact release and therefore a more accurate switching point
Roll operation of contact surface; Less sensitive to contact polution through self cleaning effect
Tài Liệu
