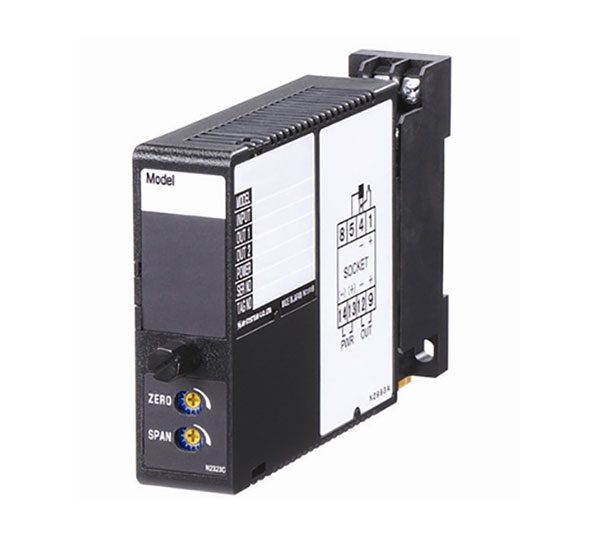

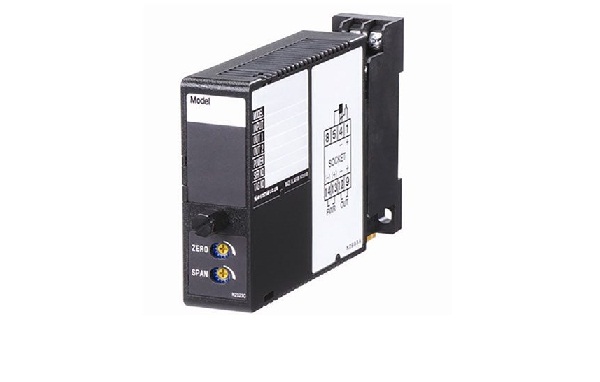

CT TRANSMITTER Series M2CA

CT TRANSMITTER

Model: M2CA

CT TRANSMITTER

Model: M2CA - 1A - M

Functions & Features
• Converts alternating current from a current transformer
into a standard process signal
• Minimum ripple
• Rerouted input signal does not pass through the base
socket in order to protect it from melting caused by rush
current of a motor
• CT Protector provided for open-circuit protection
Typical Applications
• Centralized monitoring and control of motors, pumps or
heaters by DCS
• Monitoring power line and power supply current

MODEL: M2CA–[1][2]-[3][4]

[1] INPUT (sine wave)
Current
1: 0 – 1 A AC

[2] OUTPUT
Current
A: 4 – 20 mA DC (Load resistance 750 Ω max.)

[3] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(Select ‘/N’ for ‘Standards & Approvals’ code.)

[4] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)

CT TRANSMITTER Model: M2CA
