CURRENT LOOP SUPPLY Series W2DY

CURRENT LOOP SUPPLY

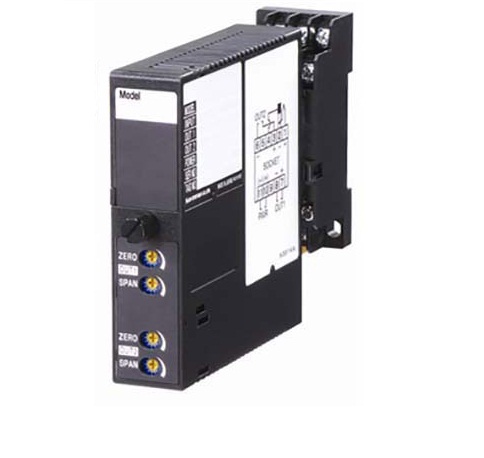

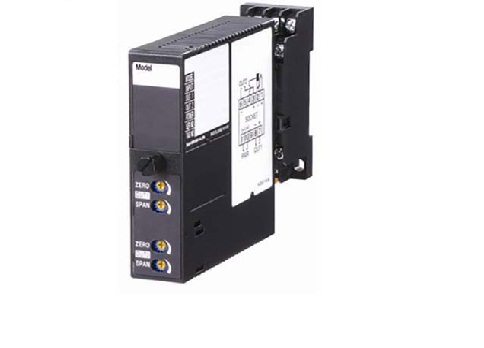

Model: W2DY

CURRENT LOOP SUPPLY

Model: W2DY - 24AA - M2

Functions & Features
• Powers a 4 – 20 mA DC current loop
• Shortcircuit protection
• Applicable to smart transmitters
Typical Applications
• Various 2-wire transmitters

MODEL: W2DY–24[1][2]-[3][4]

SUPPLY OUTPUT
24: 24 V DC

INPUT
Current
4 – 20 mA DC

[1] OUTPUT 1
Current
A: 4 – 20 mA DC (Load resistance 750 Ω max.)

[2] OUTPUT 2
Y: None
Current
A: 4 – 20 mA DC (Load resistance 350 Ω max.)

[3] POWER INPUT
AC Power
M2: 100 – 240V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(Select ‘/N’ for ‘Standards & Approvals’ code.)

[4] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE
/CE: CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)

CURRENT LOOP SUPPLY Model: W2DY
