DC/FREQUENCY CONVERTER Series M2AP

DC/FREQUENCY CONVERTER

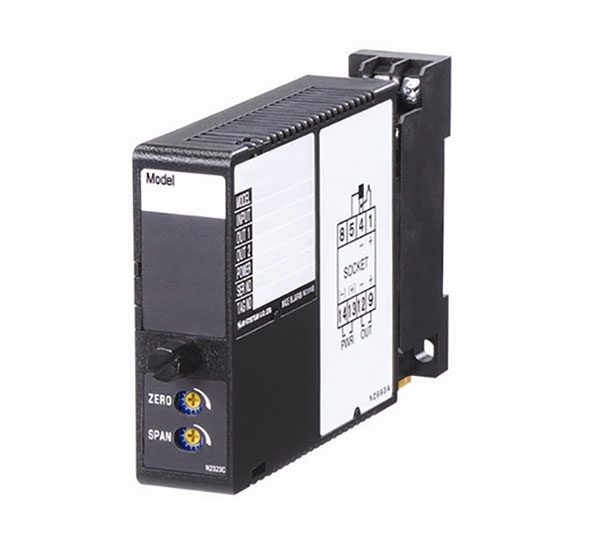

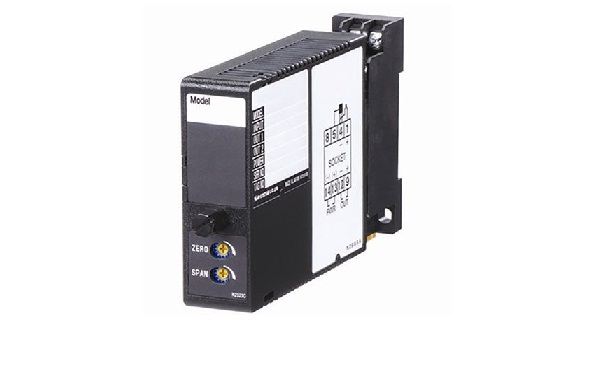

Model: M2AP

DC/FREQUENCY CONVERTER

Model: M2AP - A1 - M

Functions & Features
• Provides a pulse rate output in proportion to DC input
signal
Typical Applications
• Totalizing applications in combination with a counter

MODEL: M2AP-[1][2]-[3][4]

[1] INPUT
Current
A: 4 – 20 mA DC (Input resistance 250 Ω)

[2] OUTPUT
1: Open collector (max. 1 kHz)
2: 5 V pulse (max. 1 kHz)
3: Mercury relay contact (max. 30 Hz)
(Select ‘/N’ for ‘Standards & Approvals’ code.)
(Not conformed to RoHS Directive)

[3] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(Select ‘/N’ for ‘Standards & Approvals’ code.)

[4] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)

DC/FREQUENCY CONVERTER Model: M2AP
