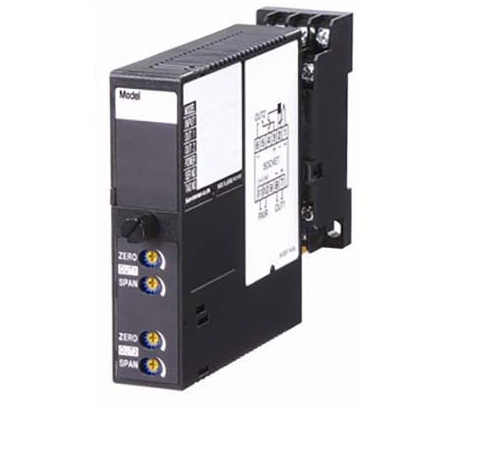

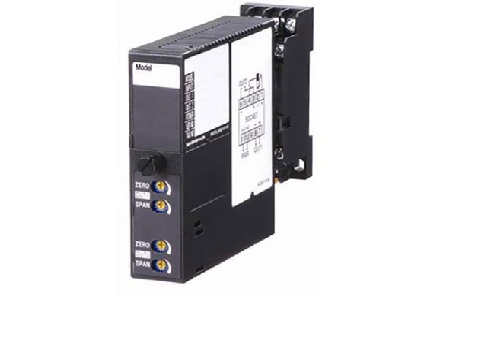

DC/FREQUENCY CONVERTER Series W2AP

DC/FREQUENCY CONVERTER

Model: W2AP

DC/FREQUENCY CONVERTER

Model: W2AP - A12 - M2

Functions & Features
• Provides a pulse rate output in proportion to DC input
signal
Typical Applications
• Totalizing applications in combination with a counter

MODEL: W2AP–[1][2][3]-[4][5]

[1] INPUT
Current
A: 4 – 20 mA DC (Input resistance 250 Ω)
D: 0 – 20 mA DC (Input resistance 50 Ω)

[2] OUTPUT 1
1: Open collector (max. frequency 10 kHz)
(When the dry contact AC/DC switch is selected as
 one of the outputs, the frequency of the other output
 is limited to max. 30 Hz.)
2: 5 V pulse (max. frequency 10 kHz)
(When the dry contact AC/DC switch is selected as
 one of the outputs, the frequency of the other output
 is limited to max. 30 Hz.)


[3] OUTPUT 2
Same range availability as Output 1
Y: None

[4] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(90 – 264 V for UL)

[5] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)
