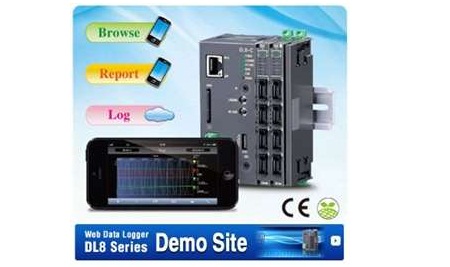

DL8 Series Demo Site
DL8 Series Demo Site
Please follow the procedure below to view demonstration site.
|
DL8 Series Demo Site
PC1. Access to 2. Enter Supported environment |
DL8 Series Demo Site
Smart Phone1. Access to 2. Enter Supported environment |
 |
 |
|---|---|
| Large sized buttons are placed for ease of operating on the small sized screen of a smart phone. |
Short trend and digital data displays are available to monitor analog, discrete and totalized pulse signals. Event log is also available to review alarm events. All the views can be quickly ready for use by simple setting.
| TREND |
•TREND VIEW SPECIFICATIONS
| Sampling rate | 1 s / 5 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 1 h / 1 day | |
| Number of pages | 8 pages | |
| Number of chs | 4 chs per page | |
| Pen color | User defined (RGB) | |
| Graph range | User defined (engineering unit value) | |
| Number of samples | Max. 7200 points per ch | |
| Scrollable charts | 1 to 10 (720 samples @chart span) | |
| EVENT LOG |
•EVENT LOG SPECIFICATIONS
| Analog signal | Alarm triggered when measured value passes across the setpoint. | |
| Discrete signal | Alarm triggered when status changes. | |
| Totalized count | Alarm triggered when pulse count exceeds the setpoint. (Counter can be reset.) |
|
| Pulse signal | Alarm triggered when measured value passes across the setpoint. | |
E-mails can be sent when an event occurs.
Specific recipients and texts can be defined for each event condition.
| DATA |
USER DEFINED VIEWS
| USING THE DL8 ORIGINAL TAGS | |
|---|---|
The DL8 original tags in an HTML file are automatically converted into corresponding text/data string by the DL8. Users who do not have technical knowledge of programming scripts can easily create an original data view. The DL8 User Defined View must be created and used under the user's sole responsibility, including its display components and functions. |
 |
| Creating User's Original Views by JavaScript or HTML |
Measured data strings can be output as JavaScript arrays. Users who have knowledge and skills of JavaScript language, HTML and CSS used to build a web site can freely create original trend graphs, bargraphs and graphic views. Analog input, analog output, discrete input, discrete output, trend data, event data and other variety of array files are available.
| JAVASCRIPT ARRAY FILES |
|---|
 |
