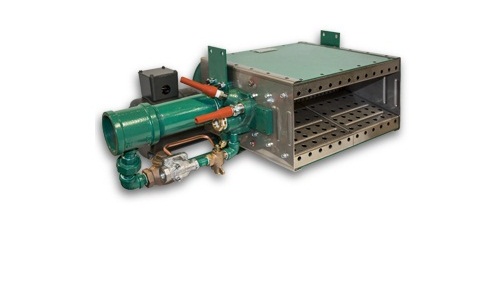

AirHeat v1





Low Emissions AirHeat Burners are Ideal for Generating a Large Volume of Clean Hot Air

As an industry standard, this low emissions AirHeat burner has a compact modular design that provides reliable operation year-after-year, with minimal maintenance. Applications include ovens, dryers, fume incinerators and similar industrial equipment. All models feature an integral combustion air blower mounted on the burner's steel case for unmatched air heating performance. By supplying the correct air volume and pressure to the burner, this blower allows stable operation over a wide range of duct velocities without installing a profile plate around the burner. The AirHeat burner burns natural gas or propane (butane versions are also available), and the burner can be ordered without a blower for usage in recirculating air applications.



AirHeat v1 Burner features:

  • Integral blower and steel case for unmatched air heating performance
  • Low NOx. CO and aldehydes.
  • Process airstream velocities from 250 to 6000 fpm, (1.5 to 30 m/s) no profiling required.
  • Up to 40:1 gas turndown.
  • Inputs up to 1,000,000 Btu/hr. (293 kW)
  • As little as 10% excess air at high fire; no oxygen is required from the process airstream.
  • Reliable operation year after year with minimal maintenance.
  • Burns natural gas or propane; butane versions available.



Current Version: 1.3
Type:  Nozzle Mixing
Number of Sizes:  Modular
Capacity Range:   1,000,000 (Btu/hr/LF)
961 (kW/m)
Turndown:  40:1
Max. Process Temperature:  1500°F, 815°C
Fuels:  Natural Gas, Propane
Typical Applications:

Incinerators

Dry-off nnd curing ovens

Indirect air heating

Textile Drying

Food Processing/baking

Ceramic Drying

Key Attributes:  Lowest CO emissions. Compact modular design. Robust, reliable performance. Industry Standard.
