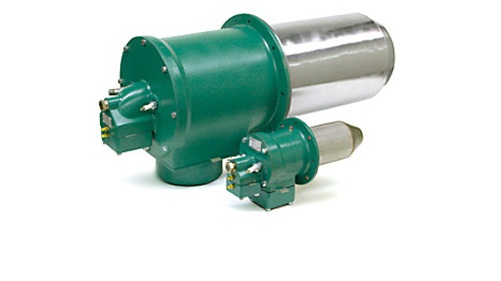

ThermJet Burners



ThermJet Direct Fire Burners Feature the Highest Flame Velocities Available.

The industry standard for velocity burners, the low NOx ThermJet represents a technological leap forward in every area of design and performance. Comparison tests show that ThermJet delivers the lowest emissions of any competitive model. Integrated gas and air orifices simplify burner piping, set-up and adjustment. Air and gas inlets are independently adjustable in 90-degree increments to suit a variety of piping alternatives. The burners are available in 14 sizes with maximum capacities ranging from 150,000 to 20,000,000 Btu/hr. All models are also available for use with preheated combustion air. Installation, operation and maintenance are simple and cost effective. ThermJet direct fire burners are made to last - with rugged Eclipse dependability and reliability built in.


  • Highest velocity flame. ThermJet produces an intense stream of hot gases to thoroughly penetrate the load and deliver precise temperature uniformity for consistent product quality and system efficiency.
  • Large turndown combined with high excess air. A wide turndown range with high excess air means ThermJet delivers high velocity benefits and efficiencies across its operating range.
  • Dependable ignition. With ThermJet you can light anywhere in the ignition range with no pilot required.
  • Customization with packaged convenience. All ThermJet components have been pre-engineered to come together to meet your specific requirements. You choose the capacity range, combustor type, fuel type, thread type and flame sensing components you need to do the job.
  • Unparalleled fuel and control convenience. ThermJet offers the convenience of multi-fuel capability with no nozzle change. Plus, you can use any control methodology...pulse firing, excess air or stoichiometric.


Current Version:  2.7
Type:  Nozzle Mixing
Number of Sizes:  14
Capacity Range:   150,000 to 20,000,000 (Btu/hr)
44 to 5860 (kW)
Turndown:  50:1
Max. Process Temperature:  2800°F, 1540°C
Fuels:  Natural Gas,
Propane, Butane
Typical Applications:

Tempering Furnaces
Hardening Furnaces
Reheating Furnaces
Fluidized Bed Dryers
Thermal Oxidizers
Non-Ferrous Melting
Ladle/Tundish, Glass Lehrs
Environmental Applications
Preheated Air

Key Attributes:  Easy set-up with built-in metering. Best high velocity burner on the market. Robust, reliable performance.
