Eclipse - 360 ImmersoPak

Liên hệ Còn hàng

ImmersoPak

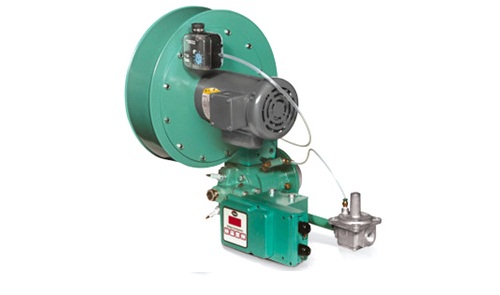

The Eclipse ImmersoPak (IP version 2.5) burner is ideal for heating immersion tubes on cleaning tanks, spray washers, salt baths, quenching tanks, tempering tanks, asphalt tanks and similar equipment. ImmersoPak is easy to install, simple to operate, and offers durability and  long service life in industrial environments. It delivers smooth, quiet performance, even during cold starts.



Please be aware that this product will be discontinued on December 31, 2018. This product will be replaced by Tube-O-Flame.  Please click the link below for more information.





  • Simplified installation.
  • Easy to set up and operate.
  • High turndown.
  • Built for long service life in industrial environments.
  • Low maintenance.
  • Low noise levels.
  • Direct spark ignition.
  • Multiple fuel capability.



Current Version: 2.6
Type: Nozzle Mixing
Number of Sizes: 6 (4", 5", 6", 8", 10", 12")
Capacity Range:   270,000 to 4,100,000 (Btu/hr)
79 to 1200 (kW)
Turndown: 4.5:1 minimum
Max. Process Temperature: 200 - 400°F, 93 - 204°C
Fuels: Natural Gas, Propane, Butane
Typical Applications:

Wash and rinse tanks

Dip Tanks

Pickling Tanks

Spray Washers

Deep Fryers

Salt Baths

Quench Tanks

Key Attributes:

Up to 80% Efficiency. Easy Setup with no gas adjustment. Compact, modular design.
