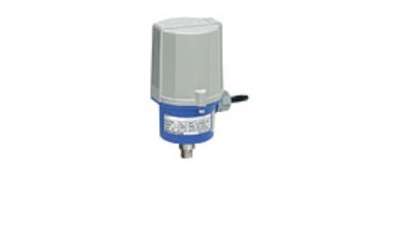

ELECTRONIC ACTUATOR, Model: MSP6-136LT-ACK3

MINI-TOP ELECTRONIC ACTUATOR
(linear type)

Functions & Features
• Small-size control valve actuator
• 1/1000 high resolution
• Seal-spring incorporated for both directions; usable with three-way valves
• Easy adjustment: electronic limiter at the valve open & closed positions
• Overload protection
• Various power inputs
Typical Applications
• Actuator for automatic control valve in pilotplants
• Air-conditioning in buildings or plants
• Micro-flow control for pharmaceutical injection
• For small-size control valves


MODEL: MSP6–[1][2][3][4]–[5][6][7][8]

ORDERING INFORMATION
• Code number: MSP6-[1][2][3][4]-[5][6][7][8]
Specify a code from below for each of [1] through [8].
  (e.g. MSP6-361T-ACR/L/Q)
• Special input range (for codes Z and 0)
• Specify the specification for option code /Q
  (e.g. /SET)

[1] STROKE
3: 10 to 20 mm (.39” to .79”)
4: 20 to 40 mm (.79” to 1.57”)

[2] OPERATION TIME, THRUST
3: 5 sec. / 10 mm, 600 N
4: 8 sec. / 10 mm, 1200 N
6: 15 sec. / 10 mm, 2500 N

[3] OUTPUT STEM TYPE
6: M6 female thread, 0.75 pitch
8: M8 female thread, 1.0 pitch
1: M10 female thread, 1.25 pitch
D: M6 female thread, 1.0 pitch
E: M8 female thread, 1.25 pitch
F: M10 female thread, 1.5 pitch

[4] TERMINAL BOX
T: With
0: Without

[5] INPUT
Current
A: 4 – 20 mA DC (Input resistance 250 Ω)
Z: Specify current (See INPUT SPECIFICATIONS)
Voltage
6: 1 – 5 V DC (Input resistance approx. 1 MΩ)
0: Specify voltage (See INPUT SPECIFICATIONS)

[6] CE MARKING
C: With
0: Without

[7] POWER INPUT
AC Power
K3: 100 – 120 V AC
(Operational voltage range 90 – 132 V, 47 – 66 Hz)
 (Not selectable for CE)
L3: 200 – 240 V AC
(Operational voltage range 180 – 264 V, 47 – 66 Hz)
  (Not selectable for CE)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

CÔNG TY CỔ PHẦN KỸ THUẬT VÀ THƯƠNG MẠI THIẾT BỊ CÔNG NGHIỆP NTD
VPGD: Số 9, Ngõ 651/82/3 Minh Khai, Hai Bà Trưng, Hà Nội.
Hotline: 0971961212
Mail: sales@ntd-automation.com

[8] OPTIONS (multiple selections)
Control Signals
blank: Without
/L: Full-open/-closed signal
/F: Forced open/close signal
/B: Full-open/-closed and forced open/close signals
(Select ‘With Terminal Box.’)
Other Options
blank: none
/Q: Option other than the above (specify the specification)
