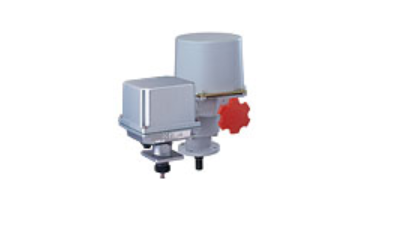

ELECTRONIC ACTUATOR, Model: PSN1-411-AK3

SERVO-TOP II ELECTRONIC ACTUATOR
(linear type; max. thrust 3000 N)

Functions & Features
• Control valve actuator drive
• Lightweight, compact design
• High reliability without electrical contacts
• Friendly user interface
• High resolution stepping motor
• Failsafe (safety shutdown) function optional

MODEL: PSN1–4[1][2]–[3][4][5]

ORDERING INFORMATION
• Code number: PSN1-4[1][2]-[3][4][5]
Specify a code from below for each [1] through [5].
(e.g. PSN1-421-AK3/E)
• Use Ordering Information Sheet (No. ESU-4857). Default setting (table below) will be used if not otherwise specified.

STROKE
4: 0 to 40 mm (0” to 1.57”)

[1] SEALING SPRING
1: 1500 N use
2: 3000 N use

[2] OUTPUT STEM TYPE
1: M14 male screw, pitch 1.5
2: Stem button

[3] INPUT
Current
A: 4 – 20 mA DC (Input resistance 250 Ω)
Voltage
6: 1 – 5 V DC (Input resistance 1 MΩ min.)

[4] POWER INPUT
AC Power
K3: 100 – 120 V AC
(Operational voltage range 90 – 132 V, 47 – 66 Hz)
 (CE not available)
L3: 200 – 240 V AC
(Operational voltage range 180 – 264 V, 47 – 66 Hz)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[5] OPTIONS
Failsafe Function
blank: Without
/E: With
Wiring conduits
blank: G 1/2"
/C: G 3/4"
(Not available for option /E)
