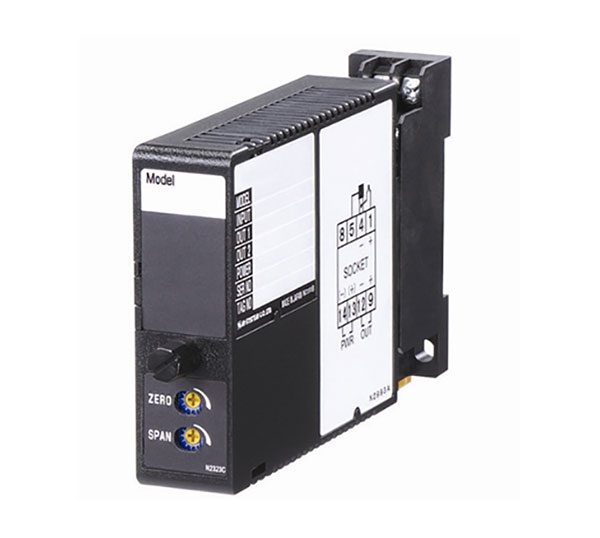

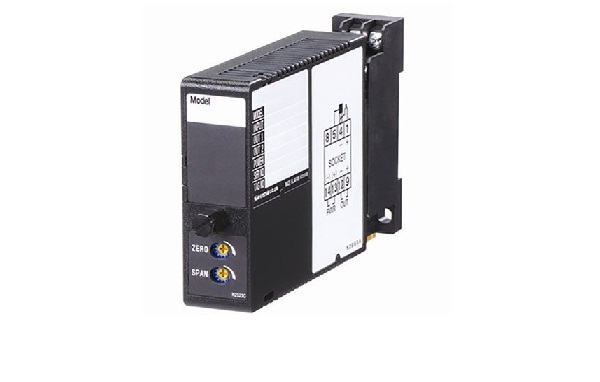

FREQUENCY TRANSMITTER Series M2XPA3

FREQUENCY TRANSMITTER

Model: M2XPA3

FREQUENCY TRANSMITTER

Model: M2XPA3 - A14Z1 - M2

Functions & Features
• Converts the output from a pulse-type transducer into a
standard process signal
• PC programmable
• Sensor excitation
• Direct RS-422 input
Typical Applications
• Positive displacement flowmeters, turbine flowmeters and
vortex flowmeters
• Measuring rotation speed of a machine generating dry
contact signals

MODEL: M2XPA3-[1][2][3]-[4][5]

[Factory default setting]
PARAMETER: DEFAULT
Input type: Open collector
Input amplitude: ----
Pulse sensing: DC coupled
Noise filter: None
Detecting level: 2 V
Frequency range: 0 – 200 kHz
Input zero frequency: 0 Hz
Input span frequency: 100 kHz
Linearization: No linearization
Low-end cutout: 0 % (No cutout)
Moving averaging samples: 1
Sensor excitation: 12 V DC / 20 mA
Output type: DC current
Output 0%: 4mA
Output 100%: 20mA

[1] INPUT
A1: Open collector

[2] EXCITATION
2: 4 V DC / 20 mA
3: 8 V DC / 20 mA
4: 12 V DC / 20 mA
Configurator software is used to change the excitation
value.

[3] OUTPUT
Current
Z1: Range 0 – 20 mA DC

[4] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(90 – 264 V for UL)

[5] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)

FREQUENCY TRANSMITTER Model: M2XPA3
