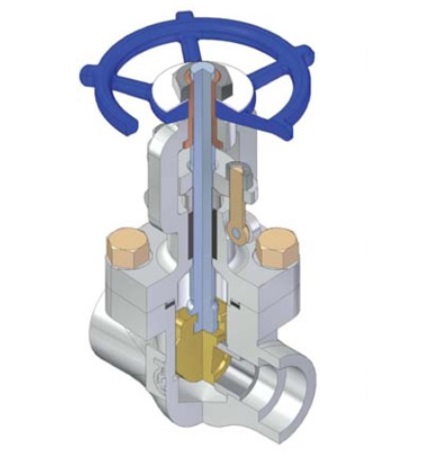

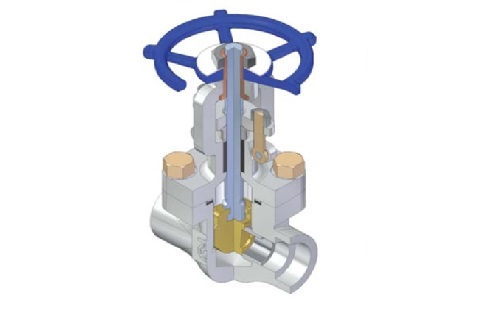

GATE VALVE - DKM

GATE VALVE

DESCRIPTION

Serves as efficient stop valves with flow in either direction. They are commonly used where a minimum of pressure drop is important because they offer practically no resistance to flow when fully open. Throttling is not conducive to accurate and consistent flow control. Also the valves may be damaged by the high velocity across the seats. They function best fully open or fully closed.



CLASS

API 800, 1500
ANSI 150, 300, 600, 900, 1500, 2500



SIZE

3/8", 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"



MATERIAL

ASTM A105, A182-F5, A182-F9, A182-F11, A182-F22, A182-F304, A182-F316,
A182-F304L, A182-F316L, A182-F321, A182-F347, A182-F51, A182-F91, A350-LF2

Other Materials also Available on Application



END CONNECTION

SOCKET WELDING, THREADED, BUTT WELDING, FLANGED



FEATURE

BOLTED BONNET OR WELDED BONNET OUTSIDE SCREW & YOKE SOLID WEDGE DISC RENEWABLE SEAT
